Product Specification
Specification:
With 3.5” TFT color & Touch panel display

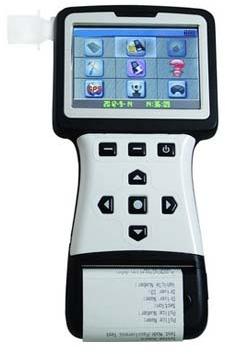

Law Enforcement Alcohol Tester with Electrochemical Fuel Cell Sensor
Built in thermal printer: Heat transfer printer (wireless dot matrix option)
Display: Big 3.5″ (320*480) touch screen LCD with graphic waveform animation
Navigating key input: Navigating key input with Touch Panel
Quick and precise analysis: Ensure a high sensitivity to alcohol and stable & reliable working life.
Easy to read: Waveform graphic display
Data download: PC down via USB port.
Mouthpiece: Easy to replace a new mouthpiece by pressing a key, very convenient and hygiene.
Power Supply: Rechargeable 7.4V Li-ion battery
Heat warm up: Chamber & Sensor warm up automatically
Auto flow monitoring: Flow detect automatically
Unit setting: mgLmg100mLºC‰BAC
Display range: 0‾0.4% BAC or 0‾4.0‰BAC or 0‾2.0mgl
Long Term Storage condition: Temperature: 0 Degree C to +55 Degree C..Humidity: 30 to 90% RH
Operating Temperature: From -20℃ to +45 ℃, ( 5℃ to +40 ℃ for optimum operation)
Memories: Min. 50,000 memories with full information:- Drive name, vehicle no., inspector name, test result with time stamp, date and time, location, instrument no., Calibration date, test no. etc…
Measurement precision: Standard deviation +–0.025 mgL or +–5 % of the measurement Drift: typically
Alert level setting: Set “drunk driving” and “driving while intoxicated” by a supervisor password.
Data management software: Can export the files as Microsoft Excel documents directly.
Advanced self-calibration: Manually parameters adjust available
