Product Description

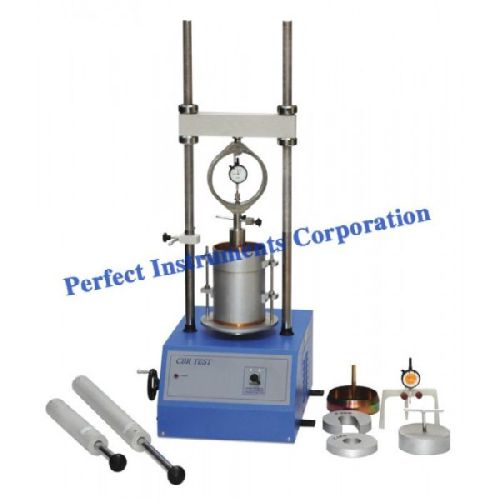

Field CBR apparatus.

It is useful in determining the load carrying capacity in the field when in place density and water contents are such that the degree of saturation is 80% or greater, when material is cohesion less and course grained. Such that it is not effected by changes in water contents and when the material has been in place for considerable time. The loading is effected by means of a mechanical load frames which can be fixed to the under side of a truck.

Specifications: mechanical screw loading jack, 10,000 kg. Capacity with u-bracket and swivel head. Penetration piston, 50mm dia. Threaded at the upper end. Extension rods consisting of 2 lengths 5cm. 2 lengths 10cm, 1 length 30cm, 1 length 50cm and 1 length 100cm, used as spacers between the proving ring and penetration piston. The lengths are machined from steel tubing. Connector set has eight connectors for coupling the penetration piston and proving ring assembly either directly or through extension pieces. Dial gauge support of seamless pipe construction. It stands 30 cm high and 45 cm wide at the base. Provided with a quick release screw type clamp capable of sliding and locking anywhere along 2 meter length of the bridge. Supplied with annular metal weight 5 kg, 250mm dia with 53mm dia central hole, slotted metal weight 5 kg. 215mm to 250mm dia with 53mm dia slot, 2 nos. Slotted metal weights, 10 kg, 215mm to 250mm dia with 53 mm dia slot 2 nos. Dial gauge 0. 01mm x 25mm. High sensitivity proving ring 5000 kg capacity with calibration chart & carrying case.
