Contact SupplierWe are offering fiberglass sleeving coated

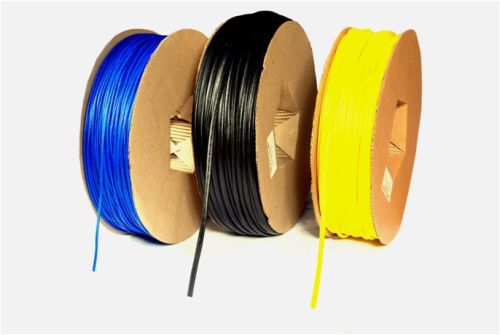

fiberglass sleeving coated with acrylic resin (kpg-701)
it is a flexible class "f" insulating sleeving i.e. Fiberglass coated with acrylic resin. Used for fractional & integral horse power motors on leads & crossovers, dry end oil filled transformers. Fiberglass coated with acrylic resin provides excellent resistance to oil & benzene making it ideal for use in hazardous areas. It also possesses longer shelf life. Acrylic sleeving is recommended as a universal coated sleeving for all thermal requirements from class 30°c to class 155°c.
product name : fiberglass sleeving coated with acrylic resin
class type: "f"
applicable specifications : astm d372
working temperature : from 30°c to 155°c, peak to 180°c for few hours
characteristics:
good mechanical resistance
longer shelf life
good compatibility with class "f" impregnation varnishes
good behavior with soldering iron
very flexible
typical applications:
acrylic sleeving is widely used in fractional and integral horsepower motors on leads and crossovers.
also used in dry and oil-filled transformers, radio and television circuits, welding apparatus and many others.
automobile harnessing.
features: compatible with most magnet wire coatings such as polyester, acrylic, polyamide, epoxy and phenolic.
inner diameter: 1mm to 40 mm.
wall thickness: we offer customized thickness as per customer´s technical requirements.
break down voltage range: from l kv to 3kv.
color: natural, white & black, other colors available on special order subject to factory´s acceptance.
length : continuous or one meter length.
standards: bs-2848, 1973
is-11654
iec 60684-3
