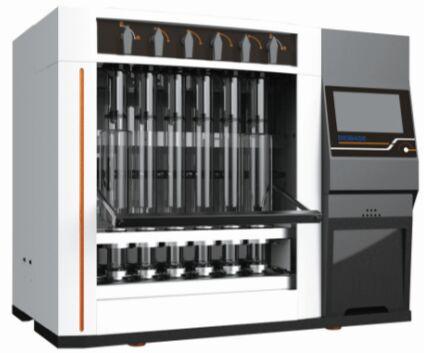

Fiber Analyzer

Listing ID #3073089

Features
1.hidden solution barrel pull structure designed to facilitate dosing operation, provide the safest fiber analysis.
2.corrosive liquid is not in contact with any pump body, to avoid waste discharge pump susceptible to corrosion phenomena.
3.the crucible recoil function designed to prevent sample in the crucible can not caking filtration.
4.with dosing overflow protection function to prevent dosing corrosive liquid overflow due to operator error, protect the safety of the operator.
5.adjust the crucible heating power in time, enabling customers to control the heating rate easily and low down the energy consumption, eco-friendly.
6.having a built-in pre-heating function, greatly reducing the whole experiment time.
7. Provide five various specifications crucible specifications to meet the needs of different samples for standard configuration.
8. Can detect crude fiber, neutral detergent fiber (ndf), acid detergent fiber (adf), hemicellulose and acid detergent lignin (adl).
Model
bk-f800
measurement range
0.1%～100%
sample weight
0.5g～3g
repeatability
craw fiber content below 10%, ≤0.4% | craw fiber content above 10%, ≤1%
capacity
6 pcsbatch
pre-heating time
10-12min
heating to boiling
13-15min
power consumption
2.2kw
power supply
220 vac ±10% 50hz
external size (w*d*h)
776*476*644mm
package size (w*d*h)
890*610*770mm
gross weight
106kg
