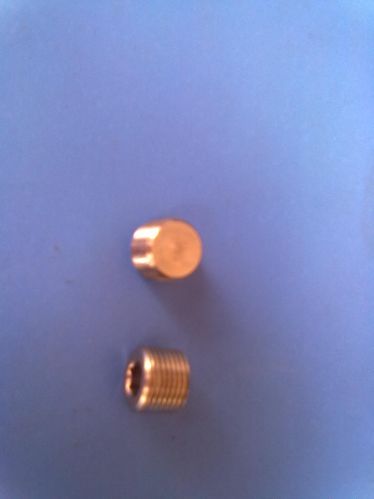

Contact SupplierWe are offering fastener (npt tread plug).
Threaded pipes can provide an effective seal for pipes transporting liquids, gases, steam, and hydraulic fluid. These threads are now used in materials other than steel and brass, including ptfe,[2] pvc, nylon, bronze, and cast iron.
The taper on npt threads allows them to form a seal when torqued as the flanks of the threads compress against each other, as opposed to parallelstraight thread fittings or compression fittings in which the threads merely hold the pieces together and do not provide the seal. As the thread body is tapered (0.75 inft or 62.5 mmm) a larger diameter keeps compressing into a smaller diameter and finally forms a seal (no clearance remains between the crests and roots of the threads because of the taper). This means that npt fittings should be burr-free and lubricated using a lubricating material like lubricating paste or tape. The use of tape also helps to limit corrosion on the threads, which otherwise can make future disassembly nearly impossible.
Commonly used sizes are 1⁄8, 1⁄4, 3⁄8, 1⁄2, 3⁄4, 1, 1 1⁄4, 1 1⁄2, and 2 inch, appearing on pipes and fittings by most u.s. Suppliers. Sizes smaller than 1⁄8 inch are occasionally used for compressed air, while sizes larger than 2 inches are uncommon, due to the use of alternative methods of joining that are used with these larger size.
