Extra large induction heaters

Listing ID #4016800

Get Latest Price

Operating area (w × h)300 × 320 mm (11.8 × 12.6 in.)
Dimensions (w × d × h)400 × 743 × 550 mm (15.8 × 29.3 × 21.7 in.)
Optional yokes to suit bearing minimum bore diameter80 mm (3.1 in.) 60 mm (2.4 in.)
Coil diameter150 mm (5.9 in.)
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

* Some special voltage versions (e.g. 575V, 60Hz CSA ready) are available for specific countries. For additional information, please contact your local SKF authorised distributor. ** Maximum heating temperature capacity depends on the weight and geometry of the bearing or workpiece. The heaters can achieve higher temperatures, please contact SKF for advice.
Standard yokes (included) to suit bearing minimum bore diameter 115 mm (4.5 in.)
- bearing, weight, temperature, time 24188ECA/W33, 455 kg, 110 °C, 28m
Dimensions (w × d × h) 400 × 743 × 550 mm (15.8 × 29.3 × 21.7 in.)
Max. bearing weight 700 kg (1 543 lb)
Bore diameter range 115–700 mm (4.5–27.6 in.)
Coil diameter 150 mm (5.9 in.)
Optional yokes to suit bearing minimum bore diameter 80 mm (3.1 in.) 60 mm (2.4 in.)
Designation TIH L33
Total weight (incl. yokes) 140 kg (309 lb)
Demagnetisation according to SKF norms <2 A/cm
Max. power consumption TIH L33/LV: 15 kVA TIH L33/MV: 15 kVA
Operating area (w × h) 300 × 320 mm (11.8 × 12.6 in.)
Voltage * 200–240 V/50–60 Hz 400–460 V/50–60 Hz TIH L33/LV TIH L33/MV
Temperature control ** 0 to 250 °C (32 to 482 °F)

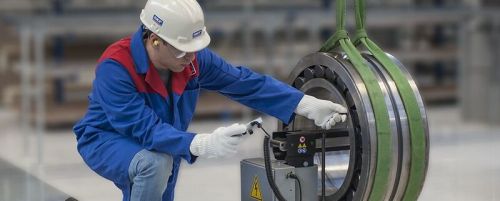

Application example:

A comprehensive range for bearings and other workpieces

The SKF TIH L series heaters are designed for induction heating of large size rolling bearings. With advanced power electronics and an effective dual coil design, the TIH L series can heat large bearings weighing up to 1 200 kg (2 600 lb), using just 20 kVA of electrical power. This represents a power saving of almost 50% compared to similar induction heaters and highlights how SKF Induction Heaters are simultaneously powerful and efficient. Unusually for a bearing heater for large bearings, the TIH L series can be supplied in medium and low voltage versions.

Advanced power electronics, with accurate electric current control, help control the temperature rate increase.
Using just 20 kVA of electrical power, the TIH L series can heat large bearings weighing up to 1 200 kg (2 600 lb).
Automatic demagnetisation reduces the risk of ferrous debris contamination after heating.
Thermal overheating protection reduces the risk of damage to the induction coil and the electronics, enhancing reliability and safety.
Available with three different operating areas.
Available in three voltage variants to suit most operating voltages worldwide.
Bearings can be heated vertically or horizontally.
