Extra High Voltage Transmission Kit

Listing ID #6065954

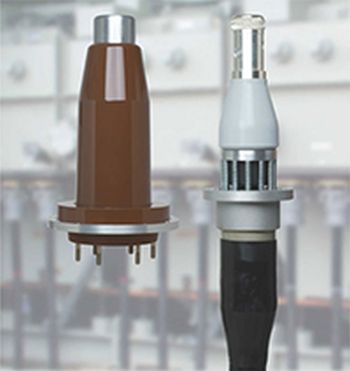

The dry compact switchgear termination for voltage classes up to 245 kV is designed to be installed in cable entry housings of gas-insulated switchgear (GIS). It complies with IEC 62271-209 standard, which essentially specifies the interfaces between the termination and the switchgear. Therefore the termination will fit into all GIS complying with IEC 62271-209. Adapters are available to match the dimensions of wet (oil-filled) type terminations, and older designs specified in IEC 60859. The termination operates in SF6 but also in insulating liquids like transformer oil.

• Dry interface, no oil-filling
• Dimensions comply with IEC 62271-209
• Pressure-tight resin housing
• Operates in SF6 and insulating liquids
• Pre-fabricated and factory tested Si-rubber stress cone
• Torque controlled or wedge-type multi-contact conductor bolt
• No special tools required to install the termination
• Isolated cable gland for sectionalisation
• Type tested according to IEC 60840, IEC 62067 and IEC 62271-209 standards
