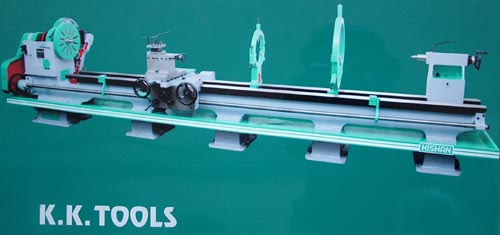

We introduce ourselves as one of the leading Manufacturers and Suppliers of the top graded Extra Heavy Duty Lathe Machine, which is used for various industrial purposes. The demand for our Extra Heavy Duty Lathe Machine has gradually increased over the time, owing to its excellent efficiency. Our Extra Heavy Duty Lathe Machine is offered at competitive prices.
Attributes
| Model | EXD /1 | EXD/2 | EXD/3 | EXD/4 | EXD/5 | EXD/6 | EXD/7 | EXD/8 |
|  | 7' | 9' | 10' | 12' | 14' | 16' | 18' | 20' |
| Bed Length | 2200 | 2740 | 3040 | 3655 | 4250 | 4800 | 5400 | 6000 |
| Centre Height | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
| Admit Betn. Centres | 800 | 1370 | 1680 | 2280 | 2900 | 3500 | 4100 | 4700 |
| Bed Width | 455 | 455 | 455 | 455 | 455 | 455 | 455 | 455 |
| Spindle Bore | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| Swing Over Bed | 790 | 790 | 790 | 790 | 790 | 790 | 790 | 790 |
| Swing Over Cross Slide | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Swing in Gap | 1140 | 1140 | 1140 | 1140 | 1140 | 1140 | 1140 | 1140 |
| Length of Gap in front of Face Plate | 215 | 215 | 215 | 215 | 215 | 215 | 215 | 215 |
| Spindle Nose Dia / Threads | 10.3/ 6TPI | 10.3/6TPI | 10.3/6TPI | 10.3/6TPI | 10.3/6TPI | 10.3/6TPI | 10.3/6TPI | 10.3/6TPI |
| Spindle Morse Taper | MT-5 | MT-5 | MT-5 | MT-5 | MT-5 | MT-5 | MT-5 | MT-5 |
| No. of Spindle Speeds | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Range of Spindle Speeds | 25 to 500 | 25 to 500 | 25 to 500 | 25 to 500 | 25 to 500 | 25 to 500 | 25 to 500 | 25 to 500 |
| Tail Stock Spindle | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| Spindle Travel | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
| Morse Taper | MT-5 | MT-6 | MT-7 | MT-8 | MT-9 | MT-10 | MT-11 | MT-12 |
| Lead screw Dia | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
| TPI | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Metric | 19/1 to 6 mm | 19/1 to 6 mm | 19/1 to 6 mm | 19/1 to 6 mm | 19/1 to 6 mm | 19/1 to 6 mm | 19/1 to 6 mm | 19/1 to 6 mm |
| Bristish | 13/2 to 24 TPI | 13/2 to 24 TPI | 13/2 to 24 TPI | 13/2 to 24 TPI | 13/2 to 24 TPI | 13/2 to 24 TPI | 13/2 to 24 TPI | 13/2 to 24 TPI |
