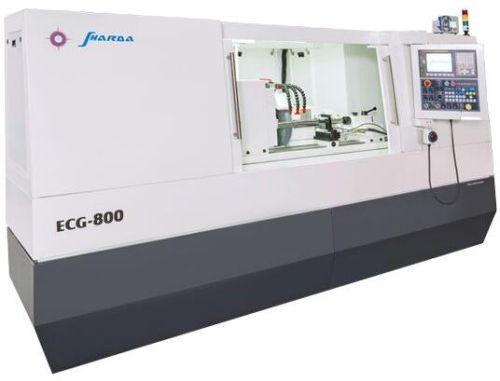

Contact SupplierThe machine base is manufactured of one piece close grained graded cast iron. Â Box type design, heavily reinforced with ribs, provides high rigidity and stability.
Â
Machine GuidewaysÂ
Work HeadÂ
Wheel HeadÂ
Tail StockIPG automatically and continuously measures the diameter being ground and compares the actual size to preset values. Confirming the diameter to the accurate dimension.
Â
FlaggingDetects the end face position on work piece, reduces idle time and ensure safety.
Â
Dynamic Balancing SystemDynamically compensates the imbalance of grinding wheel. Balancing system improve the surface finish and geometry of the work piece.
Â
Gap Eliminator / Crash ControlThis device will automatically detect the setting up or machining condition occurs, the grinding wheel will rapidly retract for safety.
Â
Lineal Scale for X and Z axisGives actual slide movement feedback to CNC system up to submicron level
SWING OVER TABLE | 300 mm |
ADMIT BETWEEN CENTRES | 500 mm |
MAXIMUM GRINDING DIAMETER | 200 mm |
MAXIMUM WEIGHT OF JOB BETWEEN CENTRES | 80 kg |
GUIDE WAYS TYPE | V and Flat (LM Guide)* |
RAPID FEED RATE | 7 |
RESOLUTION OF X-AXIS | 0.001 |
GUIDE WAYS TYPE | V and Flat |
RAPID FEED RATE | 7 |
RESOLUTION OF Z-AXIS | 0.001 |
SPINDLE DESIGN | Cartridge type with Anti friction bearings |
GRINDING WHEEL DIAMETER | 400 / 500 |
GRINDING WHEEL WIDTH | 50 / 80 |
SURFACE SPEED | 33 / 45* |
MOTOR POWER | 3.7 / 5.5* |
SPINDLE NOSE TAPER | 4 / 5* |
SPINDLE SPEED | 50 – 500 |
SPINDLE NOSE | 3 / 4* |
QUILL TRAVEL | 25 |
TAPER CORRECTION (OPTIONAL) | + 0.030 |
INSTALLED | FANUC / SIEMENS |
OPERATION VOLTAGE | 415 +/- 10 % AC 3 Phase |
FLOOR SPACE (WITHOUT COOLENT TANK) | 2900mm X 1700mm |
FLOOR SPACE (WITH COOLENT TANK) | 2900mm X 2500mm |
