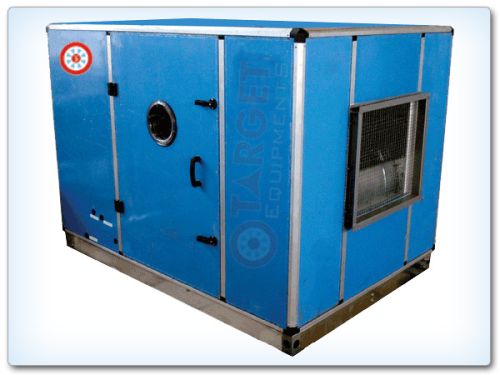

Evaporator Cooling Systems

Listing ID #3869068

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

An evaporative cooling system offers effective cooling by combining water evaporation, which is a natural process, with a reliable and simple air-moving system. Air from the outside is pulled via....

View More Details

Send Enquiry

Product Details

An evaporative cooling system offers effective cooling by combining water evaporation, which is a natural process, with a reliable and simple air-moving system. Air from the outside is pulled via moist pads where evaporation cools it and is circulated in a building or a house with the help of a large blower. During this process, the temperature of the air in the outside gets reduced as much as thirty degrees.

Compared to the conventional systems, the fill type system attains maximum saturation.
The design is compact and pre-fabricated, consumes less space, which is only about forty percent of that occupied by conventional systems.
There is no requirement for masonry work and can be placed outside the building too.
Consumption of power is negligible when compared to spray machines. This is due to low drop in pressure and low pump.
The level of maintenance is also negligible since no nozzles are used. This promises trouble-free service.
Since there are no nozzles of high pressure, the noise level is only about eighty decibel near the machines.
Quick installation ensured as the machine is fabricated and tested at factory and possesses the flexibility for relocation.
The equipments are available in FRP casings or stainless steel.
The content material at the surface is specially engineered for the pupose of direct evaporative cooling & humidification. It is constructed from a unique cellulose paper that comes impregnated with compounds that are insoluble and prevent rotting. It also contains wetting agents and stiffening saturates. The material is made out of corrugated sheet that is assembled in pads that are self supporting.
There is an arrangement of patented angle on the sheets in order to direct the flow of water towards the side of the air inlet, the place of occurrence of maximum evaporation.
The pad is also constructed to flush away the dust from the atmosphere and has a contact surface of about 440 m²/ m³ between water and air.
The cover of water distribution is of fiber glass reinforced plastic for its anti corrosive properties. The metal parts are of sixteen guage steel sheet that is galvanized.
The water tank is of 3 mm frp that is of reinforced steel.

Benefits of Evaporative Cooling System

With the latest awareness on energy efficiency, evaporative cooling systems are gaining a lot of popularity
Owing to the simple technology employed, the cost of the evaporative cooling system is cheaper
The systems operate on 120V electricity which implies that they don't require special circuits of high-amperage unlike many air conditioners. It could be plugged into an outlet nearby
The air gets moisture as a result of evaporative cooling. This helps in preventing the drying out of fabrics and wood furniture. The moist pads are good air filters and thus trap some pollen and dust. As the pads are kept wet, the trapped particles get flushed and caught in the cooler bottom.
Not much of ductwork is needed in evaporative cooling systems. For a system that is newly installed, a short duct helps to direct the air that is cooled to the building's central point.

Company Details

Vision
we have set up this organization with the sole objective of achieving a worldwide name for our organization both qualities wise and service wise. Our vision is to help the society and the nation at large with our technologically advanced products.
Mission
In order to make our dreams turn into a reality we technologically upgrade our production process and plan to reduce evaporation loss of water by 80% from the present situation.
Introduction
TARGET EQUIPMENTS IS Established in 2001 reputed concern involved in manufacturing and exporting industrial Chilling plant and all types of Cooling Towers from 10TR to more than 1000TR it’s vary from costumer requirement and there application including FRP Cooling tower, Wooden Cooling tower, Dry Cooling tower, Fanless and Fillsless Cooling Towers.
Other than cooling tower We are also involved in fabricating most of HVAC products like industrial Chilling plant, water cooled chiller air cooled chillers, oil chiller ranging from 1TR to 250TR, other than that we manufacture all types of heat exchangers likeInter Cooler / After Cooler, Shell & Tube Heat Exchanger, Oil Cooler Heat Exchanger, Tube Bundle, Evaporator Coil Cooler, Fin Type Cooler, Plate Heat Exchanger, Marine Heat Exchanger, Our company also undertakes production ofEvaporator Cooling Systems, Humidification Plant, Water Treatment Chemical, Radiators.
We have most talented and 15 years of experienced engineers are with us Mr.Ananthan, Mr.Madan and Mr.Anbu. With their experience and knowledge under there guidance and supervision we are in one of the most preferred manufacturers and exporters of the present competitive markets all over the world. We measure our growth in the industry by the increasing list of our client base and through our exhaustive market reach, which is spread in almost all major centres of the world likeUnited Arab Emirates, Oman, Saudi Arabia Europe, Africa, UAE, South America and North America.
We are customer centric entity and hence always remain focused to meet and exceed the requirements of the customers in the best possible way. We try to leave no space for any sort of customer's grievances in our overall work process. Besides being conscious towards maintaining international quality standards in our products we have also designed a feedback procedure that we receive from our customers and partners for bringing further improvement in our business performance.
Areas of Application
The broad spectrum of products offered by us is cater to the major industrial sectors:
Electricity Generating Industry
Petroleum Refining Industry
Chemical Processing Industry
Sugar Industry
Air-conditioning and refrigeration Industry
Steel Industry and so on.
Mediations & research centre
Hospitals & hotels
Foundry industry
We are involved in the manufacture and supply of following products like
Cooling Towers
Bottle Shape Towers
Square Shape Towers
Dry Cooling Towers
Cross Flow Cooling Towers
Natural Draft Cooling Towers
Wooden Cooling Towers
Chilling Plant
Water cooled chillier
Air cooled chillier
Oil cooled chillier
Heat Exchangers
Inter Cooler / Ofter Cooler
Shell & Tube Heat Exchanger
Oil Cooler
Tupe Bundle
Evaporator Coil Cooler
Fin Type Cooler
Plate Heat Exchanger
Evaporator Cooling Systems
Radiator
FRP chemical tank
Humidification Plant
Water Treatment Chemicals
Spares
FRP Cooling tower spares
Closed cooling tower spares
Wooden cooling tower spares
Crass flow cooling tower spares
RCC Cooling tower spares
PVC Fills
FRP, Aluminium Fan
SS Sprinkler
Nylon Sprinkler
Cooling Tower Motor
Nozzle
Cooling pad
Air filter
