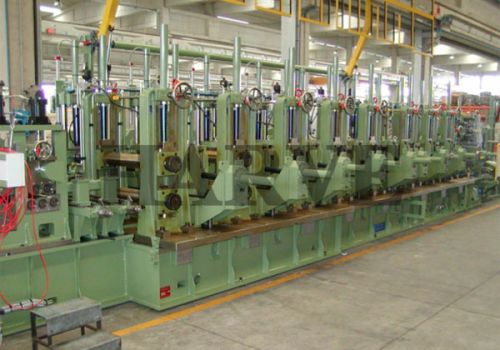

ERW Tube Mills

Listing ID #3938934

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

OTO mills is the largest manufacturer of tube mills in the world. OTO mills has been world leader since inception in the tube mill technology. OTO mills has a wide range of Tube mills which....

View More Details

Send Enquiry

Product Details

OTO mills is the largest manufacturer of tube mills in the world. OTO mills has been world leader since inception in the tube mill technology.
OTO mills has a wide range of Tube mills which covers the range of tube diameters from Tube Dia 8mm to Dia406.4mm(16”).
OTO mills has been pioneer and most successful manufacturer of cold saws.
OTO Mills manufactures tube mills for,

	Structural tubes
	Precision tubes for automotive and engineering application
	API Tubes for oil & gas ( Line pipe and Casing Pipe)
	Heavy wall tubes which are specially design for hydraulic cylinders, mechanical tubing, casing pipes and seamless replacement tubes.

In last decade OTO mill has also scale new height in the heavy wall tubes upto 16mm wall thickness. In India we have supplied 10nos. of Tube mills of various sizes.

TUBE MILLS

Standard Ranges :

Sr. No	Tube Mill Model No.	Tube Diameter Min (mm) – Max(mm)	Wall Thickness Min (mm) – Max(mm)	Mill Speed (MPM) with Cold Saw Cut-Off
1.A	OTO 384	9mm-38mm	0.9-4.2	160
1	OTO 324	9-32	0.4-2	160
2.	OTO 504	15-50	1.2-4	160
3.	OTO 765	19-76	1.2-5	140
4.	OTO 896	25.4-88.9	1.5-6	140
5.	OTO 1014	25.4 TO 101	1.2-4	140
6	OTO 1146	31.75 TO 114.3	1.2-6	140
7	OTO 1276	38-127	1.2-6	120
8	OTO 1688	50.8-168	2-8	120
9	OTO 2198	76-219	3-8	80
10	OTO 21910	88.9-219	3.2-10	80

Apart from above OTO has many permutations and combinations for Different Tube Diameters and wall thicknesses so there is a solution for every size range.

Heavy Wall Tube Mills / large Dia Tube Mills / API Tube Mills

Sr. No	Tube Mill Model No.	Tube Diameter Min (mm) – Max(mm)	Wall Thickness Min (mm) – Max(mm)	Mill Speed
1.	OTO 16814	50.8 -168	3-14	80
2.	OTO 21914	88.8-219	2-14	80
3	OTO 27316	101.6-273	3-16	80
4	OTO 33914	114-339	3-14	80
5	OTO 40616	127-426	3-16	50

COLD SAW CUT-OFF MACHINES

Cut-Off saw model No.	Tube O.D Min.(mm) - Max.(mm)	Strip Thickness Min.(mm) - Max.(mm)	Square Size range Min.(mm) - Max.(mm)	Rectangle Size range Min.(mm) - Max.(mm)	Pipe Length Min.(M) - Max.(M)	Cut Length Tolerance
TAC-80 /90	48 - 219 mm	1.5 - 10 mm	50x50mm - 175x175mm	60x40mm - 250x100mm	5.0 - 12.0 M	±1.5 mm at 80/90mpm
TAGB -121	33.7 - 127.0 mm	1.5 - 6.0 mm	25x25mm - 100x100mm	30x20mm - 150x50mm	5.0 - 12.0 M	± 1.5 mm at 120mpm
TAGB -140	19.0 - 114.3 mm	1.0 - 6.0 mm	15x15mm - 90x90mm	20x10mm - 120x60mm	3.0 - 12.0 M	±1.5 mm at 140mpm
TAGB -161	19.0 - 76.3 mm	0.8 - 6.0 mm	10x10mm - 70x70mm	15 x10mm - 100x40mm	3.0 - 12.0 M	±1.5 mm at 160mpm
TAGE -100	19.0-127mm	2.0-8.0mm	15x15mm - 100x100mm	20x10mm-150x50mm-115x69mm	3.0 - 12.0 M	± 1.5 mm at 100mpm

ORBITAL COLD SAW CUT-OFF MACHINES

Orbital Cut-Off saw model No.	Tube O.D Min.(mm) – Max.(mm)	Strip Thickness Min.(mm) – Max.(mm)	Square Size range Min.(mm) – Max.(mm)	Rectangle Size range Min.(mm) – Max.(mm)	Pipe Length Min.(M) – Max.(M)	Cut Length Tolerance
TOAC-40616	114 - 406mm	2.0- 16 mm	90x90mm -320x320mm	120x60mm – 450x150mm	6.0 - 12.0 M	±1.5 mm at 60mpm
TOCG 33916	102 - 323 mm	2.0- 16 mm	80x80mm -250x250mm	120x40mm - 350x150mm	6.0 - 12.0 M	± 1.5 mm at 80mpm

Company Details

Harve Tube Tekniqs LLP was founded by Mr. Rajesh Shyam Harve in 2004. It is India’s largest marketing company offering Complete Tube and Pipe Plant equipment and Projects. It has been a Leader since 2004
We represent the world’s leading companies manufacturing Tube and Pipe Plant equipment. Harve Tube Tekniqs LLP has given complete Turnkey project supplies to many leading Indian customers in ERW, COLD Drawn Tube Production Lines, API Pipe Plants ERW / SAW-SPIRAL and Pipe Coating Plants.
Some of our offered projects are the biggest Indian Investments in Tube and Pipe sector.
The Areas of functioning are;
ERW Welded Tube Mills
Cold Drawn Tube Production Lines
Tube Finishing Lines for ERW tubes and Seamless Tubes
Pipe Coating Plants for Oil and gas pipes. (External 3Layer PE coating / FBE Coating and Internal Epoxy / FBE coating)
Pipe Galvanising Lines
Pipe threading, socketing, capping, colour banding, Marking and Bundling Packing lines.
Spiral SAW Pipe Plants for water and Oil and Gas (API)
Large Dia ERW Pipe plants for Oil and gas (API)
Longitudinal SAW Pipe Plants
Harve Tube Tekniqs LLP has supplied to almost all major tube and pipe manufacturers in India and has a very high trust and reputation of supplying a complete Enterprise solution for Tube and Pipe manufacturing and Pipe coating plants.
Though initially started for sales of world class tube and pipe plants in India, Harve Group today also has customers in USA, Gulf and Africa.
Harve Group also gives advisory, consultancy and operational support for pipe plants and pipe coating plants.
