Contact SupplierWe are offering high quality Equal Straight Couplings that are immensely appreciated for durability and flawless performance. The Equal Straight Couplings are used for various hydraulic fittings, high pressure pneumatic applications, irrigation purposes, etc. Available in different specifications, our Equal Straight Couplings are known for providing leak-proof joint wherever applied.

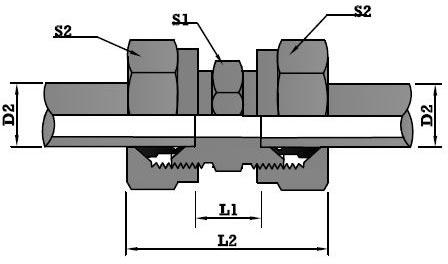

D2 | L1 | L2 | S1 | S2 | Code No. |
---|---|---|---|---|---|
6 | 10 | 39 | 12 | 14 | SECL6 |
8 | 11 | 40 | 14 | 17 | SECL8 |
10 | 13 | 42 | 17 | 19 | SECL10 |
12 | 14 | 43 | 19 | 22 | SECL12 |
15 | 16 | 46 | 24 | 27 | SECL15 |
18 | 16 | 48 | 27 | 32 | SECL18 |
22 | 20 | 52 | 32 | 36 | SECL22 |
28 | 21 | 54 | 41 | 41 | SECL28 |
35 | 20 | 63 | 46 | 50 | SECL35 |
42 | 21 | 66 | 55 | 60 | SECL42 |
D2 | L1 | L2 | S1 | S2 | Code No. |
---|---|---|---|---|---|
6 | 16 | 45 | 14 | 17 | SECS6 |
8 | 18 | 47 | 17 | 19 | SECS8 |
10 | 17 | 49 | 19 | 22 | SECS10 |
12 | 19 | 51 | 22 | 24 | SECS12 |
14 | 22 | 57 | 24 | 27 | SECS14 |
16 | 21 | 57 | 27 | 30 | SECS16 |
20 | 23 | 66 | 32 | 36 | SECS20 |
25 | 26 | 74 | 41 | 46 | SECS25 |
30 | 27 | 80 | 46 | 50 | SECS30 |
38 | 29 | 90 | 55 | 60 | SECS38 |
