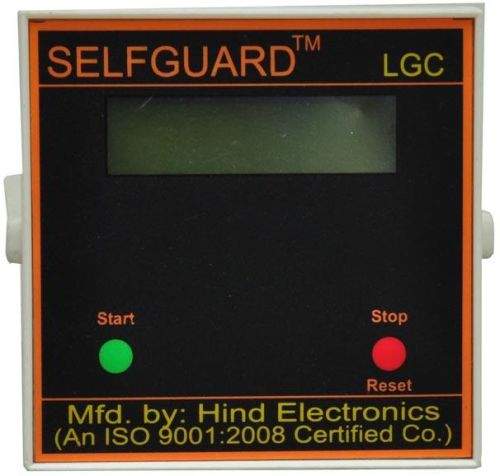

LGC Engine Control Device Introduction -The Microcontroller/microprocessor based Engine Control Device is designed to suit the necessary requirements of customer. - Backlit LCD display for easy reading of parameters. - All the inputs like main, generator and battery voltages are fully isolated to avoid malfunctioning of system. Suitable for all type of gensets. - Molded in 96mm * 96mm * 110mm plastic cabinet is suitable to mount in panel. Protection and supervision LCD Display -All the working status of unit according to the present supply is displayed. - Displays Voltage, Current, Frequency and RPM Battery voltage and Engine run time when the generator is in running Condition. Push Buttons - Manual Start. - Manual Stop/Reset. Engine Safety Features - LLOP - HWT - LFL - Engine service due tripping Visual Display - Voltage - Current - Frequency - RPM - Engine Run Time - Battery Voltage Alternator Safety Features - Over and under voltage trip. - Over and under frequency trip. - Over and under RPM trip. - Over current trip. Note: The over current tripping and Engine Service due time can be set manually.
