EN 31 Measuring Pin Set

Listing ID #1703764

1,500 / Box

Get Latest Price

MOQ 1 Box
MaterialEN 31
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We use en 31, ss 304, hss material. Hardened (60-62hrc) ground & lapped measuring pins are available in standard steps of 0.01, 0.02, 0.05, 0.10 mm & special steps are also available on....

View More Details

Send Enquiry

Product Details

We use en 31, ss 304, hss material.
Hardened (60-62hrc) ground & lapped measuring pins are available in standard steps of 0.01, 0.02, 0.05, 0.10 mm & special steps are also available on request.
Length of measuring pins up to ø1.49 mm is 40 mm & above ø 1.50mm it is 50mm.
Engravings of pins make above ø3 mm as per sizes.

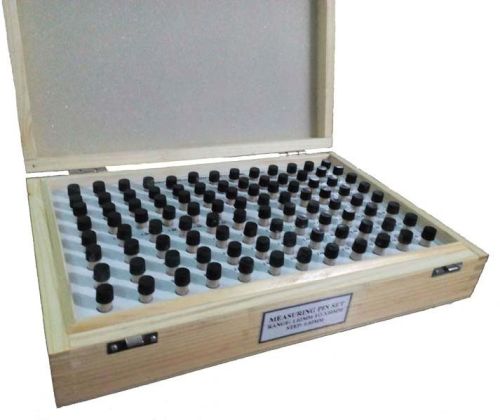

Measuring pin set are available with precise std. Wooden box.
Special length pins ex. Length 55 mm to 150 mm. Available on request.
Loose pins with odd sizes are available on request.
Pins with knob sets & loose pins with knob available on request.
Technical specifications
grade of accuracy diametrical tolerance surface finish hardness
a 0.001mm 0.1µm 60 to 62 hrc
b 0.002mm 0.1µm 60 to 62 hrc

Company Details

GEETA ENGINEERING WORK is leading manufacturing Co. in India, Providing measuring instrument across the global. We are providing instrument of MEASURING PIN SET, LOOSE PIN, THREAD MEASURING WIRES, GEAR MEASURING WIRES, REVERSIBLE PLUG GAUGE, DOWEL PIN, CENTERLESS GRINDING SERVICE, TRAUB MACHINE JOB WORK. Measuring Pins are widely used for CHECKING CENTER DISTANCES, GROOVE DIMENSIONS,BORE DIAMETER,GEAR MEASURMENT, DIAL GAUGE SETTING, STRAIGHTNESS OF HOLES, PARALLEL GUIDES, DOVETAIL GUID, DEPTH OF PROFILES & ANGLES, and many others. We also Provide 50 MM TO 300 MM DIA COPPER & ALLUMINIUM WASHER/SEAL Ring. (STD SIZES). We have team of highly trained staff with experience over 20 Years to provide accurate measuring instrument to fullest satisfaction of clients. Our more than 850 satisfied industrial clients & traders are our real achievements. By virtue of our experienced team of engineers, technicians, support staff and world class MACHINERIES & MEASURING INSTRUMENTS, We are able to build a large number of regular customers. WE ARE ALWAYS HERE TO HELP YOU !
