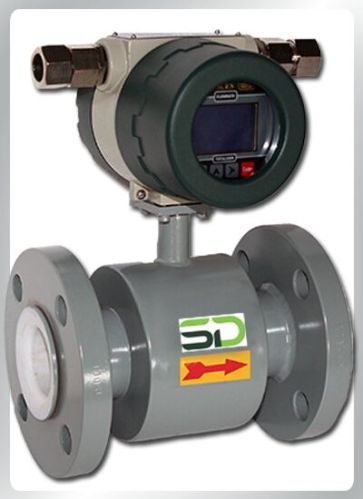

Contact SupplierThe electromagnetic flow meter accurately measures the flow rate of any conducting liquid or slurry that is flowing in closed pipes. It is obstruction less and hence offers no pressure drop in the process. Absence of moving parts ensures that there is no need for maintenance. The performance of the instrument is not affected by the properties of the material such as corrosiveness, viscosity, density, acidity and alkalinity. It can measure the flow of liquids, pastes and slurries in water, wastewater. Suitable for chemical, fertilizer, paper, dairy, sugar, food and beverage industries.
Â
Line Size | : | 15 NB to 600 NB | *Flow Units | : | M3/H, M3/M,M3/S, L/H,L/M,L/S, USG/H,USG/M,USG/S |
*Connection | : | Flanged to ASA/BS/DIN/JIS | *Output | : | 4-20 mA |
*Power Supply | : | 220 VAC/24VDC | *Relay Output | : | Batcher |
*Accuracy | : | ± 0.5% of FSD | *Flow Rate Display | : | 5 Digit LCD |
*Minimum Conductivity | : | 5 µs/cm | *Totaliser Display | : | 10 digit LCD |
*Lining | : | PTFE, EPDM, Rubber | *Communication Port | : | RS485 (Optional) |
*Process temperature | : | Up to 80°C for Rubber, Up to 150°C for PTFE | *Lowest Velocity | : | 0.033 m/s |
*Electrodes | : | SS 316,Hastalloy C, Titanium, Monel, Pt-Rh | *Highest Velocity | : | 15 m/s |
*Protection | : | IP66 / Ex-Proof; Optional: IP 68 |
