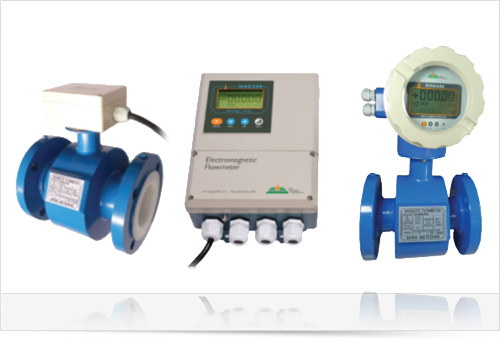

Electromagnetic Flow Meter

Listing ID #3982175

  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world

Electromagnetic flow metering is one of the oldest & most widely used across the industries. Magnetic flow meters are reliable & cost effective water flow measurement technology available. We are....
View More Details
Send Enquiry

Company Information

  • Member Since 6 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

Electromagnetic flow metering is one of the oldest & most widely used across the industries. Magnetic flow meters are reliable & cost effective water flow measurement technology available.
We are proud to be associated with Shenitech, LLC to bring this flow measurement technology for water flow measurement application. These flow meters work on Faraday’s Law principle which depends on the conductivity of media. Our magnetic flow meters are used for domestic as well as industrial water flow application having high TDS, in Sewerage treatment & effluent treatment application.

Faraday’s Law principle is annotated as below.


“When a charged media moves in a direction which is perpendicular to the direction of magnetic field an electromagnetic flux is generated which is perpendicular to the direction of both motion of charged media & magnetic field & directly proportional to the mean velocity of charge particle & magnetic field.”



Benefits & Features:

No moving parts
Can operate for conductivity as low as 5 µS/cm
High Accuracy as high as ± 1% & large flow range 1200:1
CE Approved
A large selection of liner like PTFE, Neoprene, PFA etc.
Electrode material selection

Low pressure drop



We have both integral type & remote type sensors option available as far as mounting is considered. The sensor selection is generally depend upon the application & site conditions. We recommend you to take our expert advice before making selection of appropriate sensor.

Technical Specification:

Accuracy: ± 0.5%
Damping Time 0.2~100s selectable
Analog Output: Bi-directional, isolated 0~10mA/4~20mA.
Protection Class: For electronic box IP65 (outdoor) or IP 67 (optional)
Lining Material: Rubber, PTFE, Polyurethane, PFA
Electrode Type: General type, scraper type or replaceable type
Electrode Material: 316L SS, Hastelloy B, Hastelloy C, Titanium, Tantalum
Sensor Material: Measuring tube Stainless steel
Medium Temperature: Integral type -10°C~+80°C (14°F~176°F)
                                            Remote type -10°C~+150°C (14°F~302°F)
Conductivity: ≥ 5us/cm
Measuring Range 1200:1, flow rate ≤12m/s (39ft/s)
Power Supply
Structure Type Integral type, remote type, submersible type


Company Details close-icon

Triton Process Automation Pvt. Ltd. is a leading instrumentation company driven with latest and innovative technologies catering to the energy, efficiency, process and automation industries. With world class products and excellent services, Triton offers its clients complete integrated solutions across various verticals including HVAC, Power, Oil & Gas, Pharmaceuticals, Metals and energy auditors. In order to bring the cutting edge technologies to our customers, Triton has tied up with renowned Technology provider companies to provide solutions like BTU meters, Flow meters, Control Valves & Actuator, Water quality analyzer and a whole lot of other instrumentation products.
Triton was started with an objective of being a Technology Leader and Total Integrated Solution Provider. We strive to achieve our goal by continuous innovation and bringing the latest technology in the Indian market to earn the faith of our valued customers. In pursuit to achieve our goals we have continuously made improvements in our internal process.
Triton Process Automation Pvt. Ltd. is backed by individuals with tremendous experience in Process Instrumentation and Automation industry who share the same dream of excelling as an instrumentation company.
We as a responsible company take everything concerned with the product seriously: service, support and availability. We take care of our customers not only before sales but after sales support in all phases of application. We believe in long term relationship with our esteemed customers.
Our business practices and processes have combined into a singular philosophy of being trusted partners who provide innovative solutions. It’s a philosophy we are proud to live up to....
