Electromagnetic Btu Meter, Operating Temperature : 120°C Std. (Upto 300°C).

Electromagnetic Btu Meter, Operating Temperature : 120°C Std. (Upto 300°C).

Listing ID #6332681

Get Latest Price

MOQ 10 Piece
Operating Temperature120°C Std. (Upto 300°C).
Power Supply110/230 VAC, 50 Hz / 440 VAC, 50Hz (Optional)/ 24 V DC (optional) Battery Powered
OutputIsolated 4-20mA proportional to power output
Inputa) 4-20mA from Flow meter, b) RTD, PT100 / PT1000 (Inlet Temperature ), c) RTD, PT100 / PT1000 (Outlet Temperature )
Supply Type Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Operating Temperature 120°C Std. (Upto 300°C).
Power Supply 110/230 VAC, 50 Hz / 440 VAC, 50Hz (Optional)/ 24 V DC (optional) Battery Powered
Make CBRO
Operating Pressure 16 / 20 / 30 / 40 Bar High Pressure on Request
Wireless Communication GPRS / WIFI / BACnet IP Protocol for BMS (Building Management System )
Model BTU250
Display 16 x 2 LCD, 9 or 10 Digits for Total Energy & 5 Digits for instantaneous Totaliser Power
Energy / Heat Unit Tr , BTU/Hr , Kwh , Kcal , Kcal/Hr
Lining material Hard Rubber / PTFE
Totaliser Back-Up Backup for Total Energy provide on power failure for 21/2 year
Input a) 4-20mA from Flow meter, b) RTD, PT100 / PT1000 (Inlet Temperature ), c) RTD, PT100 / PT1000 (Outlet Temperature )
Specifications :- BTU CALCULATOR
Nominal diameter DN15——DN3000mm
Language English, Spanish, Russian, etc.; minor languages can be customized.
Accuracy ± 0.25% of F. S. w. r. t inputs
Humidity Below 90%, Non Condensing
End Connection Flange ANSI 150 RF / Tri-clover
Accuracy ± 0.5 - 0.2 % of F.S.
Output Isolated 4-20mA proportional to power output
Log View Possible by scrolling of keys(Optional)
Communication RS232 / 485 Modbus Protocol
Electrode material SS316 / SS316L / Hasteloy C

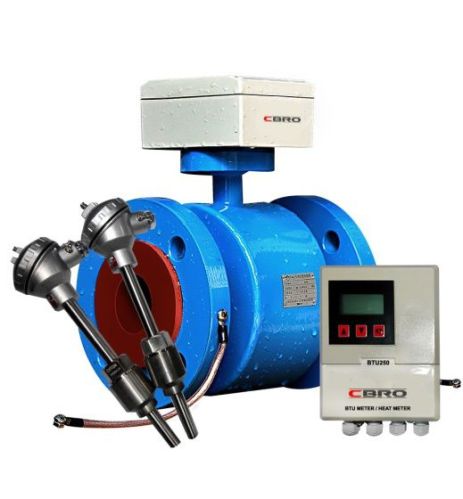

CBRO make Electromagnetic BTU meter [BTU-250] is designed to accurately measure the heat or cold energy of a water heating/cooling circuit. It is consisted of three parts, an electromagnetic flow sensor, a pair of temperature sensors and a main unit. The main unit is a powerful console which combines high accurancy flow measurement, temperature measurement and BTU Calculation. From this it calculates the thermal power and energy consumed in maintaning the temperature at given level. 9 digits are available for total energy and 4 digits are available for instantaneous power reading. The engg. unit can be easily selectable by user, either as KW & KWH or BTU / HR & BTU

Applications :

Chilled Water HVAC
Hot Water HVAC
Condensate And Heating Water Circuits
Boiler Feed Water
Thermal Storage, Geothermal System, Solar Hot-water System
District Energy Management And Billing
Commercial Building Tenant Billing
Leed / Green Building Verification,Green Credit Application
Energy Consulting
Power Plant Efficiency Monitoring
Facility Management In Shopping Malls, Campus, Industial Parks, Hospitals, Commercial Buildings,
Government Buildings, Airports And More
