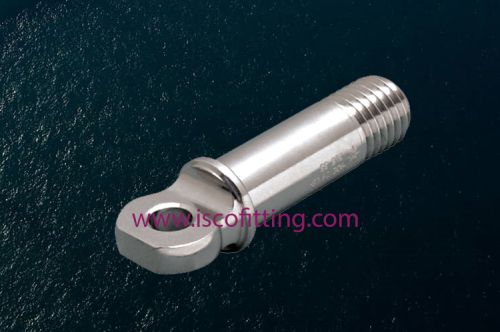

Stainless Steel US Shackle Pin

Listing ID #4179068

Get Latest Price

MaterialStainless Steel
FinishElectro Polished (EP), Aluminium Finish, Black Carbon Coated, Galvanised Coating, Bright Etc...
CondtionNew
Material GradeSS 316
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Material Stainless Steel
Finish Electro Polished (EP), Aluminium Finish, Black Carbon Coated, Galvanised Coating, Bright Etc...
Marking US Shackle Pin Manufacturer's Name, US Shackle Pin Size, US Shackle Pin Grades, US Shackle Pin Weig
Condtion New
Material Grade SS 316
Length As per Standard Length & As per Clients Requirements.
Max Size 16 inch

ITEM	SIZE	A	B	C	D	WLL (LB)	WT (LB)
ISCO-USSP01	1/ 4"	5/16"- 18	0.31"	0.98"	1.55"	1,000	0.03
ISCO-USSP02	5/16"	3/8"- 16	0.38"	1.16"	1.84"	1,300	0.05
ISCO-USSP03	3/8"	7/16"-14	0.44"	1.43"	2.20"	1,500	0.09
ISCO-USSP04	7/16"	1/ 2"- 13	0.50"	1.64"	2.50"	2000	0.12
ISCO-USSP05	1/ 2"	5/8"- 11	0.63"	1.82"	2.85"	3,000	0.22
ISCO-USSP06	5/8"	3/ 4"- 10	0.75"	2.33"	3.40"	4,000	0.41
ISCO-USSP07	3/ 4"	7/8"- 9	0.88"	2.80"	3.87"	6,000	0.61
ISCO-USSP08	7/8"	1"- 8	1.00"	3.21"	4.70"	8,000	0.91
ISCO-USSP09	1"	1-1/8"- 7	1.13"	3.70"	5.35"	10,000	1.37
ISCO-USSP10	1-1/ 4"	1-3/8"- 6	1.38"	4.54"	6.65"	14,000	2.59

Available US Shackle Pin:-

Stainless Steel US Shackle Pin:	Mild Steel (MS) US Shackle Pin:
Stainless Steel 304 US Shackle Pin Stainless Steel 304L US Shackle Pin Stainless Steel 316 US Shackle Pin Stainless Steel 316L US Shackle Pin	Mild Steel US Shackle Pin Carbon Steel US Shackle Pin Forged US Shackle Pin Steel Casting US Shackle Pin
