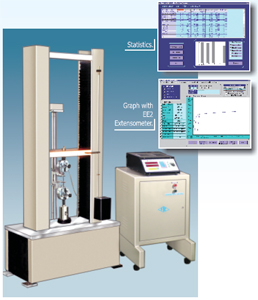

Electro-Mechanical Universal Testing Machines

Electro-Mechanical Universal Testing Machines

Listing ID #4096656

Get Latest Price
  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world

 Electro-Mechanical Universal Testing Machines UNITEK 9400 Series with PC Interface & Real Time Graph ( Panel / PC Controlled ) Technical Description : 'FIE' Universal Testing....
View More Details
Send Enquiry

Company Information

FIE - FUEL INSTRUMENTS & ENGINEERS PVT. LTD. (
Shirol, Kolhapur, Maharashtra
View Number
  • Member Since 7 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

 Electro-Mechanical Universal Testing Machines UNITEK 9400 Series with PC Interface & Real Time Graph ( Panel / PC Controlled )
Technical Description :
'FIE' Universal Testing Machine series Unitek 9400 are microprocessor based electromechanical machines with Servo drive designed for testing & studying mechanical behavior of various materials like metals, polymers, elastomers etc. These machines offer good built-in features to offer excellent stand alone performance for standard tests & great flexibility for complex analysis. These machines confirm to IS, BS & ASTM standards.

Main Features :
• Precision DC servo motor & Drive with ball lead screw gives an advanced drive system with 1 to 1000 standard speed range.
• Provision for load cell inchargeability & thereby automatic selection of load full scale & units (kN or N).
• Speed selection through Data entry or variable speed through potentiometer.
• Facility for mounting different load cells & clamping devices to suit different tests & materials such as thin wires, metalsheets, fiberglass, leathers,
   springs, cardboards etc.
• Built-in parallel interface to connect Dot matrix printer for data & curve print-out. Safety interlock for overload & limit switch sensing to ensure protection during test.
• Universal applications in R & D, education, quality control & production for test like tensile, compression, bending etc.

Electronic Control Panel (Series Universal 2001) :
• Microprocessor based panel incorporating state of art technology with following features.
• Front panel membrane type keyboard for machine operation with numeric keys for data entry.
• 7 segment display.
• Auto load cell identification.
• Data entry with numeric keyboard of test parameters including speeds, rupture % peak, preload, modulus data, test data, specimen data etc.
• 20 input data set storage, 50 result storage, maintains data & results during power off.
• Batch test facility for generating batch & statistics result. Using same data set.
• Optional remote to ease specimen loading/unloading.
• RS232C serial port. Optional windows based software available for.........
• On line graph on PC. Data analysis, statistics point tracing superimposing graphs to compare with standard, zooming graph etc.

Printer port for printer interface with :
• Graph & result printout.
• Test certificate printout.
• Batch certificate printout.
• Simple statistics printout.

Optional accessories :
FIE offers wide range of optional accessories along with Unitek 9400 machines to cover almost every material test requirement.

Loaded Cells :
FIE offers Strain gauge type Universal load cells in different capacities in the following nominal ranges :
100N, 250N, 500N, 1kN, 2.5kN, 5kN, 10kN, 25kN, 50kN, 100kN Load cells of different capacity can be offered as per customers requirements.

Grip & Clamping Devices :
A wide range of grips are available from FIE such as,
• Wedge type grips for flat & round specmens with different inserts.
• Vise type grips.
• Single threaded grips.
• Pneumatic grips.
• Compression plates.
• Bending fixtures.
• Shearing attachments.


Extenso meters :
Electronic analog extensometers are offered along with interface card on the control panel to measure extension.
• Model 1 : EE2 - STRAIN GAUGE (with 1 micron resolution).
• Model2  : LTE800-DIGITALTYPE(with 10 micron resolution).

• Serial Communication & Software Package on PC :
The Universal 2001 series control panel can be hooked to any PC using RS-232 communication port. FIE offers different window based software packages with real time graph on PC to enable the user to effectively evaluate different parameters.

The features include :
• Real time graph, User friendly software.
• Extensive graphics on screen for curve plotting, magnification and zooming.
• Software features includes Graph comparison, point tracing facility. Different units selection for load & displacement.
• Statistical evaluation with water fall dig., Mean deviation, frequency distribution, Skew dig., Histogram. Also calculates max. value, min. value, mean value,
   Variance, Standard Deviation. ( Other statistical parameters on request ). Selectable batch & statistical printouts.
• Evaluation of wide range of user selectable parameters such as % elongation, % reduction in area, young's modulus, yield stress, proof stress etc.
• Software packages for Shear, Bend, Torsion, Rubber, Textile Testing etc.
• Customer built application software to suit customer requirements.


Specification :

Model No. UNITEK 9401 UNITEK 9405 UNITEK 9410 UNITEK 9450 UNITEK 94100 Units
250 500
Load Range 0-1 0-5 0-10 0-50 0-100 kN
Load Selection 1st Range
0-20% of F.S. 		1/20000
of F.S. 		1/20000
of F.S. 		1/20000
of F.S. 		1/20000
of F.S. 		1/20000
of F.S. 		-
1st Range
20-40% of F.S. 		1/10000
of F.S. 		1/10000
of F.S. 		1/10000
of F.S. 		1/10000
of F.S. 		1/10000
of F.S. 		-
1st Range
40-100% of F.S. 		1/4000
of F.S. 		1/4000
of F.S. 		1/4000
of F.S. 		1/4000
of F.S. 		1/4000
of F.S. 		-
Load measuring accuracy +1% from 2% to 100% of load cell used. ±1% from 2% to 100% of load cell used. ±1% from 2% to 100% of load cell used. +1% from 2% to 100% of load cell used. +1% from 2%
to 100% of load cell used. 		-
Max. Crosshead stroke 1000
( Without grips & load cell ) 		1000
( Without grips & load cell ) 		1000
( Without grips & load cell ) 		1000
( Without grips & load cell ) 		1000
( Without
grips & load cell ) 		mm
Clearance between columns 450 450 450 450 450 mm
Crosshead displacement measurement 0.01 0.01 0.01 0.01 0.01 mm
Crosshead speed range 0.5-500 0.5-500 0.5-500 0.5-500 0.25-250 0.5-500 mm/min
Power Supply 230 VAC, 50 Hz Single phase 230 VAC, 50 Hz Single phase 230 VAC,
50 Hz Single phase 		230 VAC,
50 Hz Single phase 		230 VAC, 50 Hz Single phase -
• F. S. = Connected load cell full scale.
