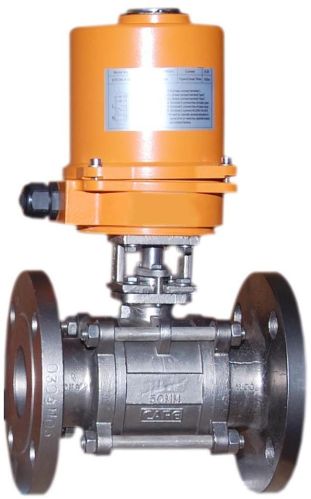

Contact SupplierMotorised 2 Way Ball Valve
Item Code: MOD-BALL-MBV
"Cair" offers CE Approved Single Phase Rotary Electrical Actuator operated Invesment Casting Ball Valve in three piece design for multiple on-off operation in the dawn stream.
Electrical Actuator Details:
Manufacturer: Cair Euromatic Automation
Brand / Model: Cair / MOD
APPROVALS : DESIGN (TUV) / ISO 9001:2008 / CE / IEC
Characteristic: On - Off Type
Travel: 90 Degree
Indicator: Continuous Position Indicator
Phase: Single Phase
Power Supply: 220V AC, 50 Hz
Body Material: Aluminum Alloy
Ambient Temperature: 20°C ~ 80°C
Motor Insulation: Class F
Protection Class: IP 67 Weather Proof
Manual Adjustment: Wrench Setting
Limit Switch: 1NO + 1NC output of 220V AC
Position on Power Fail: Stay Put
Manual Override: Provided
Accessories:
Modulating / Regulating Type
Signal Input: 4 ~ 20 mA
Potentiometer Feedback
Integral Starter Unit
Control Panel
Spring Return Type with Battery Back-up System
Size Range: 1/2" to 4" Screwed End
Size Range: 1/2" to 14" Flanged End
Ball Valve Details:
Body: WCB / SS 304 / SS 316 / SS 304L / SS 316L
Ball: SS 304 / SS 316 / SS 304L / SS 316L
Stem: AISI 410 / AISI 304 / AISI 316
Seat: PTFE
End Connection: Screwed to BSP / Flanged to 150#
