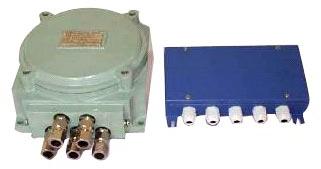

Electrical Transmitter

Listing ID #1401426

Get Latest Price

TypeTransmitter
Warranty1 Year
UseElectrical
ColorMetallic
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Type Transmitter
Use Electrical
Warranty 1 Year
Shape Round
Color Metallic
Quality Good

We are one of the well known manufacturers and suppliers of Electrical Transmitter in the market. Our Electrical Transmitter is a rugged instrument designed for measuring various parameters. Our simple to use Electrical Transmitter removes the use of display as available with an in built displaying system. It can accept mV or mA input from a variety of sensors such as load cells, torque cells, pressure sensors, temperature sensors, etc.

Properties :

Corrosion resistant
Abrasion resistant
Full Software Calibration
Available in various types of housings
Set Points with relay contacts
Dimensionally accurate

Specifications :

Accepts a pulse input and display linear position or angular position or rpm
Various input options such as mV, mA, DC, Voltage, ohms, TTL pulses, etc.
Various output options such as RS232, RS485, (MODbus), 4-20 mA, 0-5/10 VDC

Applications :

Building energy management systems
Commercial & residential sectors
Clean rooms
Museums
Climate chambers

Technical Specifications :

Sensor excitationx	± 5V DC
Sensor drive capacityv	2 nos. 350 . sensors (Optional up to 8 nos.)
Sensor connectiono	4 wire or 6 wiresors
Input signal range	0 to 30 mV (other input options on request, such as 0-100 mV, 0/4-20 mA, 0-5 VDC or 0-500 .)
Internal resolutionr	20,000 or 40,000 counts
Display resolution	1,000 to 15,000 counts (as per application)
Display full scale	65,535 counts
Non- linearity	+0.05 % of F.S.
Zero temperature co-efficientr	+0.01% RO/^oC/h
Span temperature co-efficientr	+0.01% RO/^oC/h
Drift of no-load output with temperature	+0.05 % of F.S.
Drift of no-load output after 1 hour	+0.05 % of F.S.
Drift of full scale output after 1 hour	+0.01 % of F.S.
Calibrationr	Full digital software calibration (through separate display module)
Settings	Set Points, Digital Filter, Baud Rate and Analog Output Settings
Re-transmission outputss	RS232C, RS485 (MODbus protocol), 0/4-20 mA, 0-5/10 VDC
Operating temperature rangep	0 ^oC to +60 ^oC
Storage temperature rangee	-10 ^oC to +70 ^o Co
Operating voltageg	110 VAC ±10% 50 Hz, 230 VAC ±10% 50 Hz, 12 VDC ±10%
