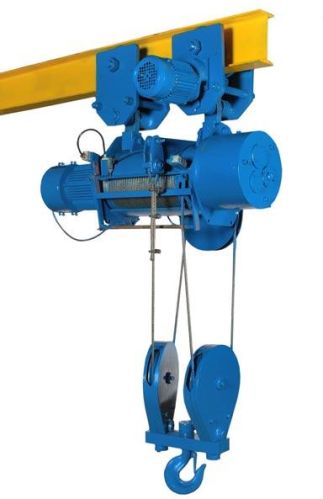

Electric Wire Rope Hoist

Listing ID #471401

The company is one of the well-known Manufacturers, Exporters and Suppliers in Kapadwanj. The Electric Wire Rope Hoist, offered by the company, is heavy duty machine suited for operations in rough working conditions. The Electric Wire Rope Hoist is known for their speed and is available in a range of up to 15 tons. With easily available spares that are interchangeable, the Electric Wire Rope Hoist also has a one-year guarantee. Wire Rope Drum is present in a welded one piece drum housing so as to provide hassle-free running of the rope drum. The welded drum housing can also negate the skewing effect and the drum housing plates are not aligned with each other. In other types of hoists, the two plates are fixed with the help of long distance bolts.
Features Of Electric Wire Rope Hoist

• Modular Construction : Easily accessible, designed with - separate independent units – Motor Side (Driving Part), Gearbox (Intermediate), Mechanism Side (Driven Part) & Control Unit. Giving ease of maintenance to the user.
• Hooks : As per IS: 15560 – 2005, supported on Thrust Bearings.
• Gears : Alloy Steel Material, precise machined, gear hobbed & case hardened – duly annealed. Spur / Helical combination to provide strength & smooth operation. Gears shall be lubricated with a semi-liquid grease / oil as per the designs.
• Braking Mechanism : Disc type, Spring Loaded acting at any load position (For MI-0 Model) & A.C. Electromagnetic Brake for Other Models
• Motor : Conical Rotor Motor – operating on 415 Volts, 3 Phase, 50 Hz AC Supply with In-built braking mechanism (For MI-0 Hoist) & Hoist Duty, Squirrel Cage Induction Motor with high starting torque – operating on 415 Volts, 3 Phase, 50 Hz AC Supply with Electromagnetic Brake. Continuously rated, Suitable for frequent reversing & braking.
• Control Panel Unit : Totally enclosed to protect from Weather / Dust, giving output at 24 Volts to the Operational Control Station (Push Button Station).
• Operational Control Station : Suspended from Hoist with a Cable & supporting Wire rope – with two push buttons extendable to four / six push button station. Operated with 24 Volts.
• Overload Relay : Provided for protection to Motor
• Limit Switches : Provided to control movement of Hook in Hoisting motion at decided levels activated by Rope Guide for Upper limit, Lower limit & over-lowering.
• Rope Drum : Made from Seamless pipe & grooves are at approx. 2/3rd of height of the wire rope diameter to have proper sitting in the drum.
• Rope Guide : Providing proper guide along the axis of Rope slides & is easy to dismantle from rope drum while maintenance.
• Designed & constructed, to give higher life of the equipment.
• Supplied with options of fix suspension (no travel – only hoisting), pull-push or geared (manual travel) or electrically operated traveling of the load
• Driven by Conical Rotor Motor – Z Start Motor (Make: Anker) for MI-0 Hoist. For Other models, Squirrel Cage Induction Motor fitted with Electromagnetic Brake is used.
• Manufactured as per IS: 3938 (Indian Standard) for Class II & Class IV (medium duty & heavy duty) application
• Designed in accordance with IS 3938-1983
• Modular construction for ease of maintenance
• Brake motor, gear box and control panel easily accessible reducing down time for maintenance
• Alloy Steel spur & helical gears running on antifriction ball bearings reduces noise & increases gear box life
• Motor as per IS 325 with fail safe brake used to ensure full safety at any load position even in power failure
• Wire Rope confirming to IS 2266
• Forged hooks as per IS: 8610
• Push button stations operates at 24 Volts only
• Can also be built with micro speed arrangement (10% of normal Hoisting speed)
• Tested at 25 % Overload
• Rope Drum is fitted in the Drum Housing constructed inline with the Side Plates supporting the Rope Drum. This, instead of Long distance bolts gives better strength & lesser skewing effect to the drum. Type ‘N’ Hoists are designed with Long Distance Bolts.
• Special Hoists with Creep Speed arrangement, Special Control Panel Station, higher lift, Short Head room also can be supplied at an extra cost.
