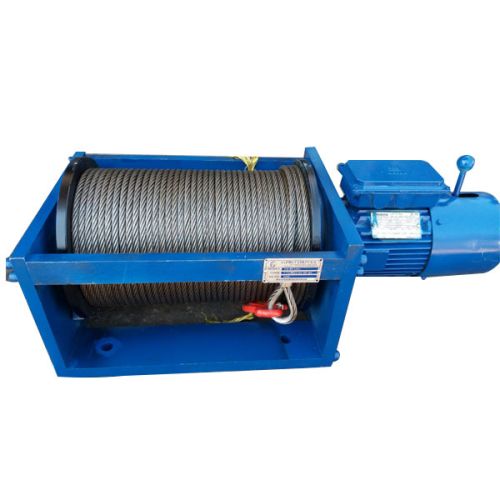

Contact SupplierOur company excels in manufacturing electric winches. They are fitted with an electric motor. Technically, an electric winch can be said a lifting device consisting of horizontal cylinder turned by a crank on which a rope or cable winds. Designed especially for the purpose of serving for applications where space is crucial and important, these winches are best suitable. Further, for smoother operation, they work on heat treated sintered iron gears enhancing smoother operations.
Â
Let us have a look at some of the product specifications and features of this industrial electric winch:Â
Characteristics | Description |
---|---|
Type | Lifting/ Pulling |
Capacity | 0.25 Ton- 50 Ton |
Speed | 0.1 m/min – 25 m/min |
Drum Type | Single (LH/RH), Double (LH & RH) |
Variety | Compact Winch (Gearbox Inside Drum), Standard (Gearbox Outside Drum) |
Drum Specifiaction | Manufactured out of Seamless MS Pipe with Grooves Welded and Stress Relieved |
Wire Rope | Dia. Ø6mm- Ø60mm, Length 5m-2000m, Const. 6X36 |
No. of Wire Rope Falls | 1-4 |
Efficiency | 97% per Stage |
Input | Electric Break Motor, Flange Mounted, S4 Duty,4/6 Pole,IP55,415V,50Hz |
Lubrication | Splash Type |
Power | 0.12kW- 110kW/ 0.16Hp- 150Hp |
Control Panel | MCB, Contactor,OL Relay,Single Ph Preventor,Pendent Switch /Remote |
Special Arrangements | 1. Spooler Arrangement 2. Wire Rope Tensioner 3. Load Monitoring Device |
Application | Construction, Material Handeling, Steel Plant, Sugar Plant, Winches |
