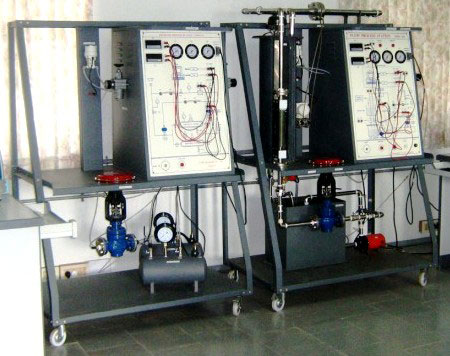

We are engaged in offering premium Process Control Trainer. Process Control Trainer offered by us is known for high performance and is very easy to understand. The set up of our Process Control Trainer consists of a centrifugal pump coupled with electrical motor, supply tank, measuring tank & pipe fittings for closed loop water circulation.
Features

• Water Circulation Closed loop.
• Compact & stand-alone set up
• MS Tanks with FRP Lining.
• Powder Coated Painted structure
• Simple to operate & maintain

Experiments

• To Study the Flow Control Loop.
• To Study the Level Control Loop.
• To Study the Pressure Control Loop.
• To Study the Temperature Control Loop.

Specifications

• Pump : HP Centrifugal Pump.
• AC Motor : HP 230V AC.
• Supply Tank : 120 Ltrs. Made of MS with FRP Lining.
• Measuring tank : 40 Ltrs. Made of MS with FRP Lining and fitted with piezo meter tube & scale.
• Piping & Fittings : GI/PVC with necessary Valves.
• Control Unit : PID Controller.
• Fitted with DP Transmitter, Capacitive type Level Transmitter, Temperature Transmitter with PT100Sensor, Pressure Transmitter, Pneumatic Operated Control Valves, I/P Converter, P/I Converter,Thyrister Drive for Heater Control, Pressure Gauges.
• Control panel : 1HP DOL Starter. Digital Timer. MCB Load and Line Indicator.

Utilities Required :

• Electric supply Provide : 230 +/-10 VAC, 50 Hz, Single phase
• Electric supply with proper earthing. (Neutral . Earth voltage less than 5 VAC.)
• 5A,Three pin socket with switch for pump. Water supply Tap water connection BSP
