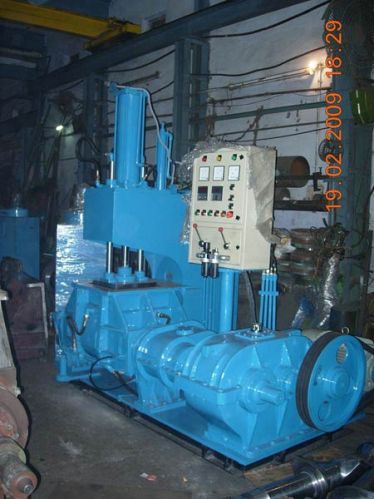

Contact SupplierWe are a noted Manufacturer and Supplier of Front Feed Front Discharge Dispersion Kneader. Front Feed Front Discharge Dispersion Kneaders are known for their time saving and high strength attributes. Moreover, Front Feed Front Discharge Dispersion Kneader provides three times output or more in comparison to the open mixing mill. Apart from this, it offers best results in kneading and mixing various products.
Specification | RNA-10 | RNA-15 | RNA-25 | RNA-35 | RNA-55 | RNA-75 | RNA-100 | RNA-125 | RNA-150 |
---|---|---|---|---|---|---|---|---|---|
Working Capacity (Approx.) |
10-15 Kgs. | 15-20 Kgs. | 25-30 Kgs. |
35-40 Kgs. |
55-65 Kgs. |
75-85 Kgs. | 100-110 Kgs. | 125-135 Kgs. | 150-160 Kgs. |
Main Motor (H.P.) | 10 | 20 | 40 | 60 | 75 | 100 | 125 | 150 | 180 |
Rotor Revolution (RPM) | 32:24:00 | 32:24:00 | 32:24:00 | 32:24:00 | 32:24:00 | 32:24:00 | 32:24:00 | 32:24:00 | 32:24:00 |
Tilting Angle | 140° | 140° | 140° | 140° | 140° | 140° | 140° | 140° | 140° |
Tilting Method | Screw Type | Screw Type | Screw Type | Screw Type | Screw Type | Screw Type | Screw Type | Screw Type | Screw Type |
Tilting Motor (H.P.) | 1 | 1 | 2 | 3 | 3 | 5 | 5 | 7.5 | 7.5 |
Air Comp. (H.P.) | 2 | 2 | 3 | 5 | 5 | 7.5 | 10 | 10 | 10 |
Dust Collecter (H.P.) | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 |
Dimension (Ft.) | 7 x 3.5 x 7 | 7.25 x 3.75 x 8 | 10 x 6.75 x 9.25 | 11 x 7.5 x 10.50 | 11.50 x 8.50 x 11 | 11.75 x 8.75 x 11 | 12.25 x 9 x 11.25 | 12.5 x 9.25 x 11.25 | 12.5 x 9.5 x 11.5 |
Approx. Weight (Tons) | 1.5 to 2 | 2.5 to 3 | 4.5 to 5 | 6 to 6.5 | 7.5 to 8 | 8.5 to 9 | 10 to 11 | 13 to 14 | 16 to 17 |
