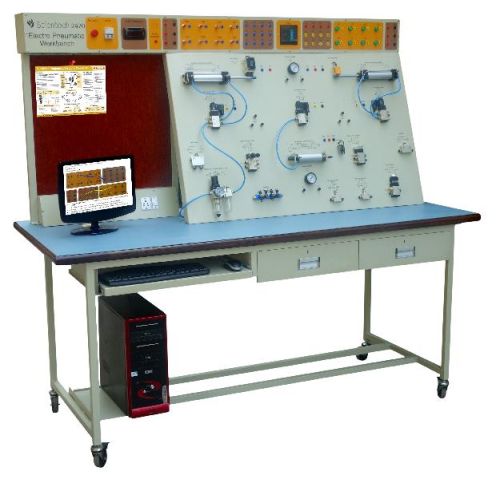

Scientech 2470 Electro Pneumatic Workbench is designed to demonstrate the design, construction and application of Pneumatic components and circuits. It integrates PLC technology to build Hybrid Industrial Automation systems with Pneumatic components and modules. Pneumatic technology is found in numerous areas of engineering. Students investigate the basic “building blocks” of modern Pneumatics and how they are interconnected to for m systems. Pneumatic Systems provide the power needed to control aircrafts, operate heavy dump trucks, excavators, operate the brakes in our cars and even power lifts in tall buildings.
PLC provides flexibility to design and build numerous systems using software and I/O inter faces without changing hard wired connections.

Product Features :

• PLC operated Electro Pneumatic platform
• 12 Digital Inputs, 8 Digital Outputs
• Open platform to explore wide PLC and Pneumatic applications
• Industrial feel & look
• DIN rail mounting for PLC
• Function and identification of Pneumatic components and their symbols
• Powerful instruction sets
• High execution speed
• Extremely easy and student friendly software
• Several sample Ladder programs
• Practice troubleshooting skills
• Extensive Learning
• Workbench has 4 wheels, for suitable movement and installation
• Robust construction
• Toggle switches, LEDs, buzzer , double acting cylinder , solenoid valve, flow control valve, manifold, hand lever valve, limit switch, proximity sensor , IR sensor , palm actuator , AND valve, OR valve, roller lever valve, FRL, pressure gauge, TEE, single acting cylinder, and air compressor
• Board to attach documents
• 4 mm patch cord connections
• Mounting panel for Pneumatic Components
• Two storage drawers with locking facility, Place in drawers for meters, patch cords, components, bread board and other accessories for storage, and easy identification.
• MCB for ON/OFF control and over load protection
• Provision for PC – CPU
• Sequential & Linear Pneumatic control
• Understanding of Industrial Pneumatic Components
• Pneumatic safety awareness
• Online product tutorials
