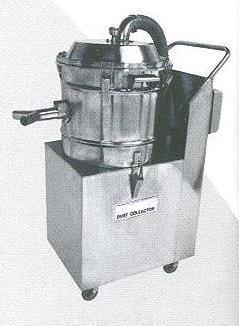

Contact SupplierThe machine consists of an impeller enclosed in an impeller housing with a suction and exhaust port. As the impeller rotates at a high speed, a partial vacuum is created in the impeller housing and atmospheric air is sucked in from the suction port and exhausted from the exhaust port. This air suction is used for doing useful work. The machine is basically a vacuum cleaner, the suction side of which is used to cleaning purpose. It is connected to the tablet / polishing machine by a hosepipe from where the dedusted powder is sucked out and collected.
Salient Features:
Model |
KDU 100 |
KDU 200 |
KDU 400 |
Vacuum developed by blower |
500 mm of water (max) |
800 mm of water (max) |
1200 mm of water (max) |
Air flow |
2800 LPM |
5500 LPM |
11000 LPM |
Electric supply |
380-415V, 3 PH, 50 HZ |
||
Drive motor |
0.75 KW, (1 HP), 2 Pole |
1.5 KW, (2 HP), 2 Pole |
3.75 KW, (5 HP), 2 Pole |
Inlet connection and outlet |
38mm O.D. (Two way) |
||
Net weight in Kg. |
150 |
||
Gross weight in kg. |
180 |
|
|
Machine dimension in mm |
950 X 600 X1483 |
|
