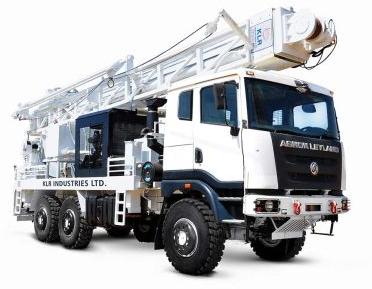

KLR DTHR 600 is powered by a 6X6 truck engine or separate deck engine. Based on the latest technology, these drills are used to drill water wells is suitable for hole dia 6.5” (continuous), 9”, 10” and 12”(overburden) by DTH Drilling and 8”,12 ¼(Continuous) & 16”(overburden) by Rotary Drilling up to a depth of 600 meters. The rotation with direct circulation ensures that the drilling is done properly. A hydraulically driven 7 ½ “X 10” mud pump is also mounted on the same truck.
| Technical Data | Description |
|---|---|
| Hole Diameter | 6.5"(Continuous)9",10" and 12"(Over burden) 8"(Continuous)and 12 ¼" & 16"(Over burden) |
| Depth | 600 meters |
| Truck | AL 6 X 6 / 31.230 / 31.280 /As per customer request. |
| Prime Mover | Deck Engine or As per customer request. Horse Power : 320HP |
| Application | Water Well Drilling Rig |
| Formation | Soft / Hard / unconsolidated / Alluvial |
| Mast | Hydraulic cylinder with pulley and wire rope | Maximum Pull up force - 32840 kgs | Maximum Pull down force - 16085 kgs | Reeving Ratio 1:3 | Maximum Pull up speed - 35 meter / minute | Maximum Pull down speed - 45 meter / minute |
| Rotary Head | Max speed: 0- 170rpm | Maximum Torque: 1300 kg.m |
| Hydraulic system | Maximum Working pressure 320 kg/cm2 | Pumps: Load sensing |
| Hydraulic oil cooler | 120gpm / 150 gpm |
| Break out wrench | Maximum Torque 500kg.m2 | Cylinder bore 80mm / 100mm | Stroke 300mm / 350mm |
| Leveling jacks | Four Box Hydraulic leveling jacks |
| Water injection pump | Triplex reciprocating pump powered by hydraulic motor |
| Optional attachments | Shock sub, Stem lock, hole sweeper, Dust collector, Digital controls, Auto drilling, Auto Rod charger, GPS system, Driller AC cabin, Data logging system, Welding generator, Six rod carousal and mud pump. |
| Rod changer | Manually operated rod changer to handle single rods with 1000 kgs. capacity pull up winch to carry drill rods, casings and hammer tools. |
| Mast raising cylinder | Bore: 125mm2 | Stroke: 800mm | Quantity: 2 No's |
| Air compressor | 1500 cfm – 400 psi / 1200 cfm – 330 psi or 1100 cfm – 300psi / As per customer request |
| Air line lubricator | 18 liters |
| MUD PUMP | Capacity: 7½" x 10" | Linear size: 7½" | Stroke : 10" | Flow : 2494 lpm | Pressure : 20.74 kg/cm2 |
KLR Industries Limited was founded in the year 1984, by Mr. K. Laxma Reddy. Beginning with just manufacturing of DTH Bits & Hammers, the range proliferated to master the art of manufacturing a wide range of Drilling Rigs suitable for various applications. From the very start, KLR Universal has always delivered quality and quantity on time and is very proud of the milestones we reached today.
KLR has a wide Global Presence and is recognised in about 60 countries across the world. Our continuous R & D has ensured a very long and efficient working life of our equipment and this truly has helped us with the strong brand name that we carry today.We have successfully to our credit given Efficient & Reliable machines to Governments of various countries like India, Africa and Middle East. We have a very wide dealer and service support network across Africa and the Middle East.
KLR Industries has a Global Presence and is recognised in about 60 countries across the world. Our continued R & D has ensured a very long and efficient working life of our equipment and this truly has helped us with the strong brand name that we carry today.
KLR Industries also manufactures Drilling Accessories like DTH Hammers, Cluster Hammers, Rock Roller Bits and API Drill Rods.We are an ISO 9001:2015 certified company providing world class quality products and services that provides the most affordable and reliable solution for drilling across the world.
KLR Industries has successfully given Efficient & Reliable machines to Governments of various countries like India, Africa and Middle East. We have a very wide dealer and service support network across Africa and the Middle East.
KLR Industries growth has come from a three prong approach namely – Product Development, Capacity Enhancement and Process Improvement. Our dedicated R&D Team is constantly working on improving product efficiency and giving cost effective solutions to benefit our end users.
