DSV-ETK Series Hi Speed Servo Tensioner

DSV-ETK Series Hi Speed Servo Tensioner

Listing ID #3556385

Get Latest Price
  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world

The DSV-ETK series features high speed closed loop servo tensioners with maximum wire-feeding speed of 25 meters per socond.   Details : The combination of a built-in Adaptive Speed Control....
View More Details
Send Enquiry

Company Information

Trophy Tech India verified-icon
Bangalore, Karnataka
View Number
  • Member Since 10 Years
  • Nature of Business Retailer
  • GST No. 29AADFT3587E1ZW

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

The DSV-ETK series features high speed closed loop servo tensioners with maximum wire-feeding speed of 25 meters per socond.



Details :

  • The combination of a built-in Adaptive Speed Control Software and high speed/torque DC servo motor provides fast response to rapid changes in coil winding speed and a wide tension range for high -speed precision winding.
  • It also features a built-in tension measurement system. The real-time display of tension calue provides a clear & convenient, way to observe the winding tension, aiding in better control of product quality.
  • The series operates with DC48V power supply, and comes with two -stage tensions setting and wre breakage detection.



Advantages

  • Simple & clear LED indicator
  • Easy adjustment of main tension
  • Dual spring tension control, wide tension range



Requirements

  • Power supply - DC 48V
  • Compressed air. 5kg/cm2


Basic Specifications Of DSV-ETK Series

Model Tension Range (grams) Max Wire Travel speed Current Consumption Applicable wire size (mm) Dimensions(mm) Weight (Kg)
DSV-ETK-C15-45S400 1.0g-400g 15m/s 3.0A 0.01-0.25 320*185*80 2
DSV-ETK-C25-45S400 1.0g-400g 25m/s 4.5A 0.01-0.25 320*185*80 2.5
DSV-ETK-C15-45J1000 30g – 1000g 25m/s 4.5A 0.06-0.40 400*200*90 3.2

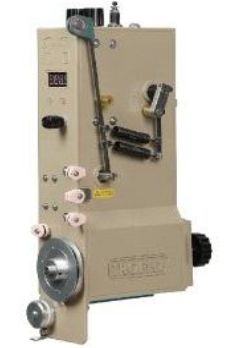

Product Images

  • DSV-ETK Series Hi Speed Servo Tensioner
  • DSV-ETK Series Hi Speed Servo Tensioner
  • DSV-ETK Series Hi Speed Servo Tensioner

Company Details close-icon

Trophy tech india established in the year 2002 and became sole indian distributor to china trophy precision apparatus co.,ltd. Who is the leading manufacturers of winding nozzles, ceramic products, tension meter and wire tensioners. And also we manufacture and dealers of imported and indigenous enamel wire stripper, wire twisters, paper nozzles, schmidt tension meters, coil winding machine spares and toroidal winding machine spares.
trophy tech india has always been orientated towards 'customer satisfaction' and we are familiar with the market requirements and are continuously advancing our products and services for the benefit of our customers. The objective is to provide all innovative products ear-marked for the winding machinery, textile and knitting machinery sector.
Trophy’s quality management system has passed the national quality assurance limited (nqa) for authentication and access ukas accreditation logo in feb 2002.
  • Nature of Business Manufacturer / Exporter / Service Provider / Supplier / Retailer / Distributor / Importer / Trader
  • Number of Employees Below 20
  • Year of Establishment 2002
