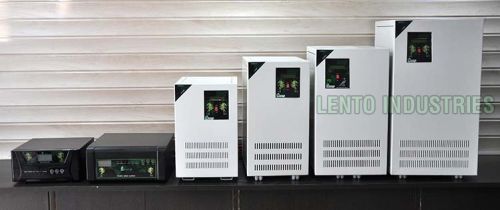

Contact SupplierWe are the leading manufacturer and supplier of DSP Sine Wave Static UPS from Delhi, India. The appliances such as fans, motor based equipment like pumps and AC, CFL, fans, etc. have all been designed to operate on the 50 Hz sine wave. This inverter is mainly used as a backup source in a number of call centers and offices. It can be used in devices such as scanners, printers, Computer & peripherals, fax machines, mobile power systems and AC as well as other compressor based applications.
Product Details
State of the art MOSFET/IGBT based PWM Technology to increase Crest Factor
Auto sense intelligent control smart charger
Electronic change over, hence much better reliability
Quiet operation of AC motors as well as other inductive loads unlike the noise that emanates from modified Sine Wave Systems.
Salient Features & Comparison with Other available Brands
Why Static UPS
Applications
Features | Other Brands | LENTO |
---|---|---|
State Of Art MOSFET/IGBT Based PWM Technology to increase Crest Factor. |
Yes | Yes |
Fast Changeover ensuring reliable Compatibility with Computers |
No | Yes |
Electronic change over, hence much better reliability others are using relay for changeover whereas we are using SCR | No | Yes |
Selector Switch for Normal/UPS | No | Yes |
TDR (Time Delay Relay), especially for AC compressor based applications |
Partly Yes(Some brands have some does not have) | Yes |
LCD Display Options | Yes | Yes |
Surge Load Capacity up to 300% | No | Yes |
DSP based which results proper control over voltage and current |
No | Yes |
MODEL | ||||||||
---|---|---|---|---|---|---|---|---|
DESCRIPTION |
2.5KVA |
3KVA | 3.5KVA | 5KVA | 6KVA | 7.5KVA | 10KVA | 12KVA |
Output Wave Form |
Pure Sine Wave |
|||||||
Nominal Battery Voltage | 36 VDC 48 VDC |
36 VDC 48 VDC |
48 VDC | 48 VDC, 96 VDC, 120 VDC, | 120 VDC, 180 VDC | 120 VDC, 180 VDC | 180 VDC, 360 VDC | 192 VDC |
WEIGHT AND DIMENSIONS | ||||||||
With Packaging LXWXH in mm | 470x440x610 | 470x440x610 | 470x440x610 | 500x495x660 | 500x495x660 | 600x500x740 | 600x500x740 | 600x500x740 |
With Out packaging LXWXH in mm |
310x290x450 |
310x290x450 | 310x290x450 | 350x300x540 | 350x300x540 | 550x350x660 | 550x350x660 | 550x350x660 |
Net Weight | 29 | 32 | 32 | 54 | 54 | 78 | 89 | 104 |
Gross Weight | 36 | 39 | 39 | 58 | 58 | 89 | 100 | 115 |
Application | Load | 2.5KVA | 3.5KVA | 5KVA | 7.5KVA | 10KVA | 12KVA |
---|---|---|---|---|---|---|---|
Petroleum Outlet | Fan | - | 2 | 4 | 5 | 5 | 5 |
Tube light | - | 3 | 4 | 5 | 8 | 8 | |
Petrol Filling machine | 1 | 1 | 2 | 3 | 4 | 5 | |
Institute | Fan Only | 25 | 32 | 50 | 75 | 100 | 110 |
Browsing Centre (Type 1) | Fan | 15 | 20 | 35 | 55 | 70 | 75 |
Tube light | 10 | 15 | 20 | 35 | 40 | 50 | |
A.C | - | - | 1 | 1 | 2 | 2 | |
fan | 4 | 6 | 4 | 8 | 8 | 10 | |
Tube light | 4 | 6 | 4 | 8 | 8 | 10 | |
Computers | 4 | 5 | 2 | 6 | 6 | 6 | |
Browsing Centre (Type 2) | Fan | 4 | 6 | 10 | 12 | 20 | 25 |
Tube light | 4 | 6 | 10 | 12 | 20 | 25 | |
Computers | 4 | 5 | 8 | 12 | 15 | 20 | |
Corporate Bldg. | AC | - | - | 1 | 1 | 2 | 2 |
Fan | 15 | 20 | 8 | 12 | 15 | 20 | 20 |
Tube light | 10 | 15 | 8 | 12 | 16 | 20 | 20 |
