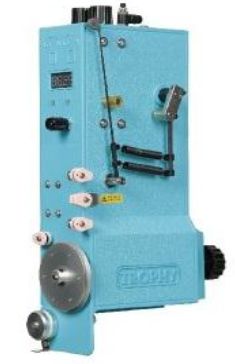

DS-ETK-C Series Pulse Servo Tensioner

Listing ID #3556387

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

With a pulse motor, a tension control system and a tension measurernant system all packed within the body casing the DS-ETK-C series compact in design. The sensitive and quick response....

View More Details

Send Enquiry

Product Details

With a pulse motor, a tension control system and a tension measurernant system all packed within the body casing the DS-ETK-C series compact in design.

The sensitive and quick response feedback control system provides precise. stable and consistent tension for high speed quality winding. Two different tension values can be set.

It also features a built-in tension measurement system The real time display of the tension value provides a clear and convenient way to observe the wording tension, aiding in better control of product quality.

The series comes with two stage tension setting and wire breakage detection.

Details

Weight – 2.5 kg
Dimensions - 318mm*185mm*81mm

Requirements

Power supply : DC 24V/ DC 48V
Compressed air. 5kg/cm²

Basic Specifications Of DS-ETK-C Series

Model	Tension Range (grams)	Max Wire Travel speed	Power Source	Current Consumption	Applicable wire size (mm)
DS-ETK-C07-45S200	1.0g-200g	7m/s	DC24V	2.0A	0.01-0.18
DS-ETK-C07-45J600	40g-600g	7m/s	DC24V	2.0A	0.05-0.35
DS-ETK-C12-45S400	2.0g-400g	12m/s	DC24V	2.5A	0.02-0-25
DS-ETK-C12-45J600	40g-600g	12m/s	DC48V	3.0A	0.05-0.35
