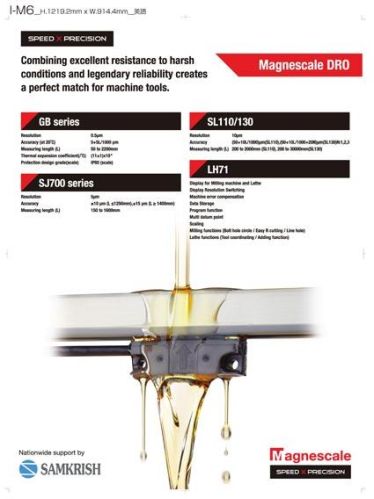

Dros Linear Scales

Listing ID #1395433

Get Latest Price

Supply Type Supplier
Preferred Buyer Location All over the world

We are offering dro's linear scales features magnetic principle excellent resistance to workshop conditions (pl20b equivalent to ip67).resistant to oil,dirt,vibration,and shock. Resolution :....

View More Details

Send Enquiry

Product Details

We are offering dro's linear scales features
magnetic principle
excellent resistance to workshop conditions (pl20b equivalent to ip67).resistant to oil,dirt,vibration,and shock.
Resolution : 10am
max.response speed: 300 m min(varies with the read and settings)
available in lengths up to 30 m (sl 130)
high cost efficiency.easy installation on all types of machines from wood working to metal cutting.
An optical encoder
accuracy :(50+10l1000)μm(sl100),(50+10l1000+20n)μm(sl130)n:1,2,3
measuring length(l)200 to 2000mm(sl110),200 to 30000mm(sl130)
high resolution:1°1000, 1°10000
compact, easy to mount design .
Built-in zero point.
Battery backup
ab phase and z output
high response speed
noncontact reading
can be directly mounted to the rotary shaft
protective design grade: equivalent to ip64
major applications: rotary shaft control for equipment such as horizontal machining centers, nc grinding machines, axis control for index tables

Company Details

SAMKRISH – SMS Division, Evolve, Emerge and Endear to customers with latest positioning feedback technology from Time-to-Time, with Pre-Process, Post–Process and Stand alone application for Electronic, Print & Imaging, Medical, Pharmaceutical, Aerospace, Automotive, Food and Beverages, Paper, Steel Industries etc…
24x7 supports, ready to supply from Ex-stock Critical Spares and commitment to keep Customer's downtime at ease which has been the singular success so far with latest time of delivering within 3 days maximum.
Our Strengths:
Engineering Expertise accrued from diverse exposure to Eminent Industries.
Outstanding Personnel
Able Support of our Principals
Constant Knowledge Update
We extend State-of-the-Art Solutions on either partial or total turnkey basis.
For Automotive Industries
Total Digital Gauging Solutions with system Integration for Applications such as Camshaft seating on Cylinder Head, Gudgeon Pin measurement on the Piston, Brake Contact Height measurement etc.
Retrofit Solutions with Open/ Closed NC Loop Feedback Scales for Conventional/NC Machines for 5VTTL, 1Vp-p with Absolute Battery Backup including Rotary Magnascales.
