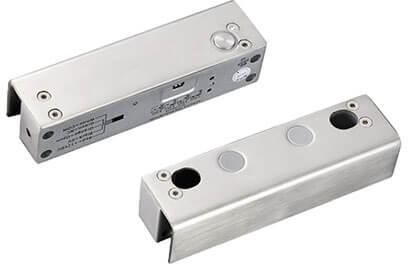

Drop Bolt Lock, Operating Temperature : -40°C to +60°C

Listing ID #6403257

The door will lock while supplied with power, and unlock without power. It is made from durable and high aluminum alloy material, durable for use. Special circuit design, the door will unlock until the power is cut off. With no external interference, making it more stable and safer. TIMER Settings for 3-6-9 Seconds Signal Output: Door Status Output, NO/NC/COM Start Current: 950mA Standby Current: 80mA sturdiness Electric Frameless Glass Door Lock is a High security lock suitable for framed glass doors, wooden doors, metal doors, fire doors. Lock body are made of high hardness corrosion resistant aluminum alloy, all solid lock withstand 1000 pounds linear positive impact. Special photoelectric control ultra-low temperature, low efficacy,Safe and reliable energy saving.

Double Swing Door Electric dropbolt is especially designed for both outswing and inswing doors in max 180 degree.

Vandal Resistant Circuitry DesignThe reed sensor automatically disconnect once the bolt is completely locked to avoid unauthorized access attempts.

Long Life Solenoids Specially designed solenoid for enhanced strength and long operating life time through up to 500,000 cycle tests

Energy Saving Design After the electric dropbolt is completely locked, the current draw drops from 0.9A to 0.3A to prolong its lifetime.

Features :

• Solid bolt polishing housing, 1000Kg Holding Force
• Fail-Safe: Locked when energized
• Easy installation
• Face plate material: 304 high aluminum
• Door Status Monitoring : Signal Output, NC/COM
• Autolock time delay 0, 3, 6, 9 sec
• Endurance cycle tested up to 500,000 operations
• CE Approved
