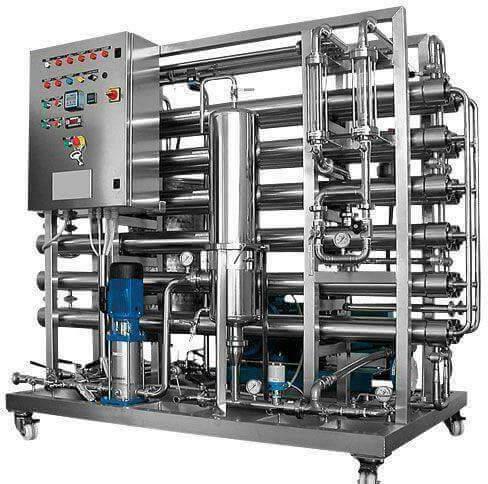

Drinking Water Plant

Listing ID #4254574

BOTTLED WATER MANUFACTURING PLANT Water Purification Plant is designed to produced 5000 LPH PROCESS >> Oxidation Chamber: To convert Ferrous Iron to Ferric form. Pressure Sand Filter: To remove suspended matter from the water. Activated Carbon Filter: To remove color, odor & smell from the water. To remove oil & grease from the raw water. To control BOD & COD in the raw water. Antiscalant Dosing System: To save Membrane elements from scale deposition & chocking due to scale. Micron Filtration: To remove micron particles from the raw water. Osmotic pressure system (High Pressure Pump) To create osmotic pressure in the raw water.Desalination System by Reverse Osmosis Membrane Element. To desalt the raw water i.e. to reduce total dissolve solids. Ion Controlling System. To adjust the minerals contains in process water by means of mixing of raw water in the desalted treated water. Due to propionate mixing required quantity of raw water, we can mix to get required quantity of ions from raw water to desalted water.Storage of Mineral Water. To remove back pressure in R.O. Membrane elements.Fine polishing filtration.To filter water from 1 to 0.5 micron and achieve crystal clear filtered treated water. U.V. System. To kill the bacteria from the fine water. elements. Ozonization. To prevent biological and micro organism growth in the stagnant water. Final treated water transfer pump. To transfer crystal clear & bacteria free mineral water for Packing / Bottling. Re-Circulation of mineral water for Ozonization. To re-circulate and add ozone in mineral water.

FLOW CHART OF DRINKING WATER PLANT SCOPE OF SUPPLY

Water Storage Tank ,Transfer Pump ,Pressure Sand Filter ,Activated Carbon Filter ,Antiscalant Dosing ,Micron Filtration System ,High Pressure Pump System ,Desalting Process ,Mixing Process ,Storage of Treated Water Polishing Filtration ,U.V. Disinfection System ,Ozonization System ,Pet Preform Manufacturing, Bottle Rinsing, Filling & Capping ,Pet Bottle Blow Moulding ,Box / Carton Packing Machine.
