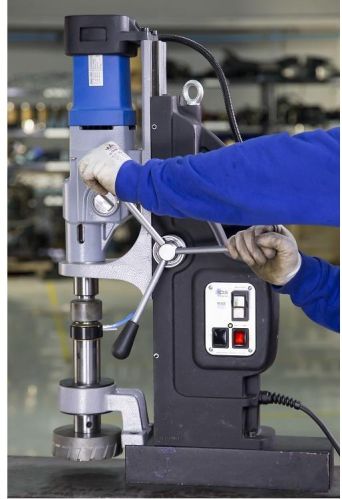

Contact SupplierWe are offering drilling and tapping machine.
Mab 825
made in germany
the advantages of the mab 825
> the classic of the large-size series with mt 3
> for core drills with a cutting depth of 30 mm, 55 mm, 75 mm and 110 mm.
> suitable for twist drills, reamer chucks, countersinks and thread cutting systems
specification
core drill short 30 mm: 12 - 100 mm
core drill long 55 mm: 12 - 100 mm
core drill overlong 75 mm: 18 - 60 mm
core drill extra-long 110 mm: 20- 60 mm
twist drilling: 31.75 mm
reaming: 31.75 mm
countersinking: 50 mm
thread cutting: m30
motor output: 1800 watt
voltage: 230 v ac, 50-60 hz
stroke: 255 mm
magnet size: 110 x 220 x 54 mm
weight: 25 kg
industrial arbor: mt 3, 32 mm weldon (1 14")
quick change drill chuck: keyless, 19 mm weldon (34")
morse taper: mt 3
speed range 1: 40 - 110 min-1
speed range 2: 65 - 175 min-1
speed range 3: 140 - 360 min-1
speed range 4: 220 - 600 min-1
permanent internal lubrication: yes
friction clutch: yes
torque control: yes
full wave control electronics: yes
magnet indicator: yes
overheating protection: yes
cwccw rotation: yes
carbon brush wear control: yes
