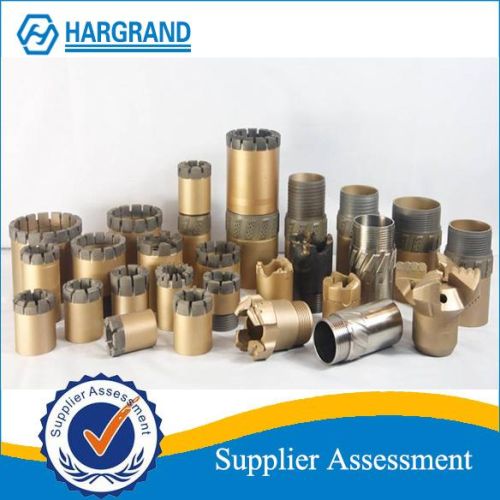

Impregnated Diamond Core Bits Aq Bq Nq Hq Pq Sq

Listing ID #2101926

Get Latest Price

TypeCore Drill Bit
MaterialDiamond
ApplicationGeological wireline drilling
Machine TypeDrilling Tools
Supply Type Supplier
Preferred Buyer Location India only

View More Details

Product Details

Type Core Drill Bit
Material Diamond
Application Geological wireline drilling
Machine Type Drilling Tools
Matrix height 6-25 mm
Hardness S1,S2,S4,S6,S7,S8,S9,S10,S11,S12
Body Type Steel body
Water way SW TW EX DD FD
Certificate ISO 9001:2008
Standard Wireline Series, Metric standard, DCDMA, CDDA

We offer impregnated diamond core bits description:
the impregnated diamond drill bits are the most commonly useful bits in the mineral exploration industry, as they have the widest range of application. The high grades of synthetic diamond are distributed in the bit's matrix.
Impregnated diamond core bits size available:
"q" series: aq, bq, nq, hq, pq, sq,bq3, nq3, hq3, pq3,
"tw” series: btw, ntw,
"tt” series: nqtt, hqtt,pqtt
size
outside diameter inside diameter
inch mm inch mm
aq 1.8801.870 47.7547.50 1.6071.057 27.126.85
bq 2.3502.340 59.6959.44 1.4381.428 36.5236.27
hq 2.9702.960 75.4475.19 1.8801.870 47.7547.50
nq 3.7703.755 95.7695.38 2.5052.495 63.6363.38
pq 4.8154.795 122.30121.80 3.3503.340 85.0984.84
hargrand drilling products:
diamond drill bits,pdc bits,t.c bits,tsp bits,carbide bits,direction bits
reaming shells and casingrod shoes
wireline drill rods,conventional drill rods
wireline core barrels & overshot assemblies,single tube and double tube core barrels
hoist plug and water swivels,circle wrench,clamp,etc
recovery tapes and recovery rods
other bit size available:
c series(same as q series): ac,bc,nc,hc,pcactk,bctk,bc3,nc2,nc3,nctt,hc3,hctt,pc3,pctt
t2 series: t2 46,t2 56,t2 66,t2 76,t2 86,t2 101
t6 series: t6 76,t6 86,t6 101,t6 116,t6 131,t6 146, t6s 101
tseries: t36,t46,t56,t66,t76,t86
bseries: b36,b46,b56,b66,b76,b86,b101,b116,b131,b146
wf series: hwf,pwf,swf,uwf,zwf
wt series: rwt,ewt,awt,bwt,nwt,hwt
wm series: ewm,awm,bwm,nwm
wg series: ewg,awg,bwg,nwg,hwg
others: nmlc,hmlc,ltk48,ltk60,bgm,ngm,adbg,atw,btw,ntw,nxd3,ax,nx,tt46

Additional Information

Payment Terms T/T
Packaging Details carton /wooden case
Delivery Time 3 working days after receiving payment

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

HARGRAND (Former: BAOQI) was specialized in producing drilling tools and DTH TOOLS. It is located in Yanjiao National High-Tech Development area at Hebei Province which is 20 kilometers away from Beijing Capital airport, and 170 kilometers to Tianjin port. Some important logistics parks are also setting around HARGRAND's factory.
HARGRAND provided a whole set of drilling tools,drill mud,drill rigs,drilling equipment,DTH tools,rock drill which include Diamond Bits, PDC Bits, T.C bits,DTH Bits,Drill Rigs,Drill Mud,Pneumatic Rock Drill,DTH Hammmer,Inclinometer, Casing Shoes, Reamers, Core Barrel Assembly and Accessories, Drill Rods, Casing and other drilling tools. All these products are mating with Chinese standard(P75, P91, P110, S59, S75, S95), 'C' series standard , and special standard(base on customers' requitements).
HARGRAND has many senior engineers and drilling technicists to ensure the producing, trouble-shooting and after-sale service. With over 20 years of producing expertise, HARGRAND provided high quality and utility drilling tools to worldwide market. There are 60% of the products to be sold to Mongolia, Russia, Kazakhstan, Vietnam, Iran, and Australia. In 2008, HARGRAND passed the quality management system certification (ISO 9001:2000).
