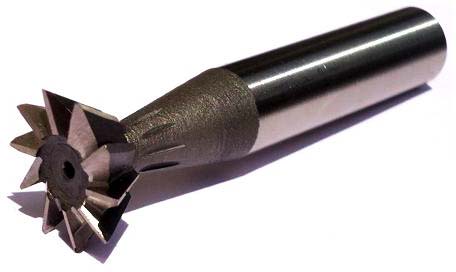

Contact SupplierDovetail Milling Cutters are equipped with weldon shanks. The Dovetail Milling Cutters are suitable for use in a wide range of Ferrous and Non-Ferrous Materials. Only high speed steel is used in these Dovetail Milling Cutters. Specifications of the Dovetail Milling Cutters conform to: IS 6255 – 1982. We are among the most widely recognized Manufacturers, Suppliers and Exporters of Dovetail Milling Cutters.
Applications
Dia. of Cutter in MM | Dia. of Cutter in Inches | Overall Length | Dia. of Shank in MM | Dia. of Shank in Inches |
---|---|---|---|---|
12 | ½ | 60 | 10 | ¾ |
16 | 5/8 | 60 | 12 | ½ |
20 | ¾ | 63 | 12 | ½ |
25 | 1 | 67 | 16 | 5/8 |
32 | 1.1/4 | 71 | 16 | 5/8 |
40 | 1.1/2 | 75 | 20 | ¾ |
50 | 2 | 80 | 25 | 1" |
56 | - | 100 | 25 | - |
60 | - | 100 | 25 | - |
