A printed circuit board with the conductive circuit pattern on both sides. Generally the majority of the holes will be plated through.

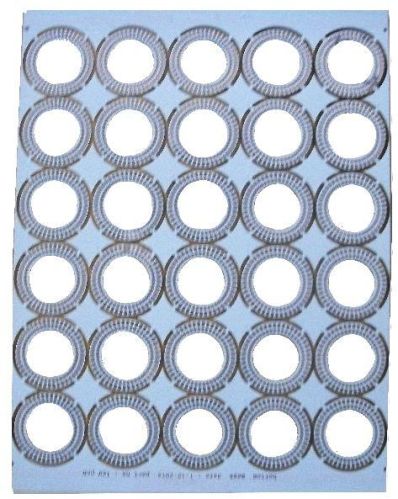

The double sided printed circuit boards that we offer are individual PCBs that are stepped up onto a bigger panel, tooled with fiducially marks to assist assembly and and are bridged (using break out pips) or scored so boards can be freed from the panel.
It allows many PCBs to be manufactured at once and also means many PCBs can be assembled together that reduces the process time. The entire gamut is manufactured usingCEM1, CEM3, FR2, FR4, polyimide, RT droid and PTFE.
These single sided printed circuit boards are widely used in various electronics applications. Being single sided circuit board, it connects various electronic components electrically. We can provide customization to our range of single sided printed circuit boards.
| Drill Tloerences | |
|---|---|
| 0.5 - 2.5mm | (+/-) 0.05mm |
| > 2.5mm | (+/-) 0.10mm |
| Size Tloerences | |
| < 150mm | (+/-) 0.10mm |
| > 150mm | (+/-) 0.20mm |
| Product Finish | |
| Singal Side | HAL / TIN |
| Double Side | HAL / TIN BBT |
| Solder Mask Finish | SM OBC / PISM |
| Solder Mask Colour | Green / White / Blue / Red / Black |
| Legent Colour | White / Black |
| Product Raw Material | |
| Singal Side | FR4 , CEM1, MC PCB |
| Double Side | FR4 |
| Fixible | 0.2MM FR4 |
