Contact SupplierElectronic Control Systems installed in CNC machines and other special purpose machines generate heat during operation. Apart from heat, moisture-laden air and dust also adversely affect electronic controls.

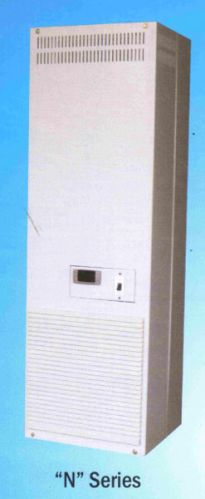

We offer premium Panel Coolers to maintain a clean environment required in Electronic Control Panel Cabinets using a closed loop design. This ensures locking out of excessive heat caused by high ambient temperatures, moisture and dust.
The clean air, within the Control Panel cabinet, is continuously cooled by the refrigeration system and re-circulated and the required operating temperature can be maintained within the cabinet; thus maintaining cool, clean, moisture free, environment at all times. We are amongst the reliable Providers of the Panel Coolers.
Features
Typical Applications For Panel Coolers
Model | FTPCmini | FTPC500 | FTPC1200 | FTPC1500 | FTPC2700 |
---|---|---|---|---|---|
Operating Voltage | 230v/50Hz | 230v/50Hz | 230v/50Hz | 230v/50Hz | 230v/50Hz |
Rated Current | 2.9 AMPS | 2.9 AMPS | 3.8 AMPS | 5.5 AMPS | 5.7 AMPS |
Starting Current | 15 AMPS | 15 AMPS | 17 AMPS | 28 AMPS | 25 AMPS |
MCB | Yes | Yes | Yes | Yes | Yes |
Duty Cycle | 100% | 100% | 100% | 100% | 100% |
Compressor | KCE419HAG | KCE419HAG | KCE444HAG | AKR4460 | AKR5512 |
Power Consumption | 460W | 460W | 670W | 877W | 1240W |
Refrigerant | R134A | R134A | R134A | R134A | R22 |
Permissable Pressure | 24 bar | 24 bar | 24 bar | 24 bar | 24 bar |
Temperature Controller | Digital | Digital | Digital | Digital | Digital |
Side Mounting Model | Yes | Yes | Yes | Yes | Yes |
Top Mounting | No | Yes | Yes | Yes | Yes |
Weight in Kgs | 20 | 38 | 40.5 | 50 | 55 |
Cooling Output | 480W | 480W | 1200W | 1500W | 2700W |
Colour | Seimens Grey - Powder Coating | Seimens Grey - Powder Coating | Seimens Grey - Powder Coating | Seimens Grey - Powder Coating | Seimens Grey - Powder Coating |
Model | FTPCN1750 | FTPCN2700 | FTPCN3150 |
---|---|---|---|
Operating Voltage | 230v/50Hz | 230v/50Hz | 230v/50Hz |
Rated Current | 3.6AMPS | 7AMPS | 5.8AMPS |
Starting Current | 14AMPS | 32AMPS | 25AMPS |
MCB | Yes | Yes | Yes |
Duty Cycle | 100% | 100% | 100% |
Compressor | KCN463HAG | KCJ498HAG | KCJ511HAE |
Power Consumption | 792W | 1232W | 1280W |
Refrigerant | R134A | R134A | R22 |
Permissable Pressure | 450PSI | 450PSI | 450PSI |
Temperature Controller | DIXELL | DIXELL | DIXELL |
Side Mounting Model | Yes | Yes | Yes |
Top Mounting Model | No | No | No |
Weight in Kgs | 52 | 54 | 56 |
Cooling Output | 480W | 480W | 1200W |
Colour | RAL 7035 - Powder Coating | RAL 7035 - Powder Coating | RAL 7035 - Powder Coating |
