Contact SupplierWe do not have to worry about stock-out situations and undertaking bulk orders, as are facilitated by a large storage facility. It has the latest inventory management software that helps us to maintain year around availability of the products. We are reckoned as the noted Supplier of Double Head CNC Wood Router as we are capable of meeting the exact requirements of the buyers.

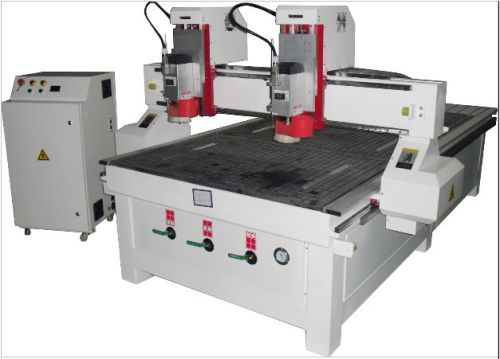

3D Wood Carving Machine for Wood Industry
Application :
This is Cost Effective CNC Router Machine and suitable for Continuous Wood Working Industry and Long life Machine Stability.
Optional Accessories
Features of CNC Router Machine
Adopt advanced CNC system, configured with practical and easy-learned software, can conveniently check the moving path of tool, and adjust the processing depth of Z axis and the speed of motor.
Description | Parameter |
---|---|
XYZ working area | 1600*2500*200mm |
Table size | 1610*3000mm |
XYZ travel positioning accuracy | ±0.05mm |
XYZ repositioning positioning accuracy | ±0.05mm |
Table surface | T-slot PVC sheet table |
Gantry | Steel Structure |
Drive system X-Y axis | Rack actuation |
Drive system Z axis | Ball screw |
Spindle power | 3.0 KW / 3.5 KW |
Max velocity | 50m/min |
Max working speed | 25m/min |
Spindle speed | 0-24000rpm |
work mode | Step(optional servo) |
Working voltage | AC220V/380V |
Command language | G code |
Interface | USB |
Operating system | DSP / NC Studio |
Flash memory | 128M |
X-Y resolution | 0.025mm |
Software Compatibility | Artcam |
