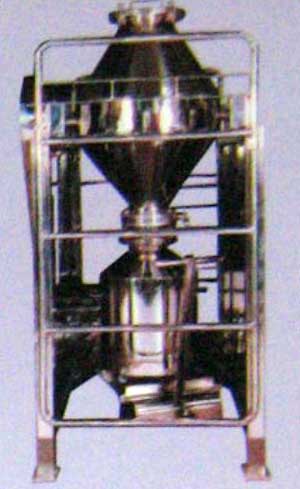

Double Cone Blender

Listing ID #302920

We are a renowned Double Cone Blender Manufacturer in India. Our Double Cone Blender is highly demanded for uniform mixing of dry powder and granulates. Our Double Cone Blenders are widely appreciated for high efficiency and versatility and are designed as per GMP model. Two third volume of our Double Cone Blender is filled to ensure proper mixing. These Double Cone Blenders are provided with advanced safety features like safety guards. Available In

• 5 kg to 1000 kg batch capacity

• All contact parts are made out of SS304/316(as per customer requirement) quality material
• Worm reduction gear use for speed reduction
• Hand wheel will be provided for manual tilting of cone
• Inside & outside of the cone is polished to the mirror finished
• All safety guards & covers made out of SS304 in GMP Model
• All moving parts covered with SS304 covers
• Enclosed drive with Powerful Reduction gear box and motor
• General structure made out of SS304 and Polished to the matt / mirror finish (as required by you) in GMP Model
• As per GMP standards with validation documents
• One shaft with 04 nos. of fixed buffels with mirror polished provided inside the cone
• Food grade rubber gasket will be used on both end of cone as well as in butterfly valve
• The Double Cone Blender is an efficient and versatile machine for mixing dry powder and granules 304 or 316 quality material, as required by customer
• Manual rotating facility with hand wheel for inching. The same will be provided with SS cover & limit switch. ( In 200 Kg & above model)
• Two nos. of safety road will be provided at back side. (One LH side & one RH side)
• Suitable size of butter fly valve at one end of the cone provided for material discharge & hole with openable cover provided at other end of the cone for material charging & cleaning
• Cone will be mirror polished from the inside & outside & structure will be matt polished
• Safety guards made from SS304 pipes provided in front of the m/c with limit switch
• Panel fabricated from SS304 material with facility of three phase indication, D.O.L. tarter, digital timer & Amp. Meter
• As per customer requirement machine will be provided with left side drive or with right side drive
• Safety guards provided with limit switch to not start the machine when safety guards are not in proper position

• Pharmaceutical industry
• Food industry
• Chemical industry
• Cosmetic industry
