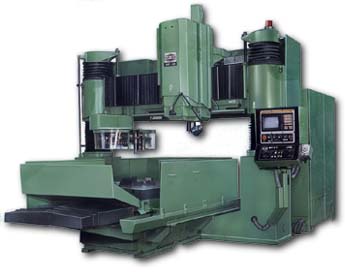

Double Column Drilling Centre

Double Column Drilling Centre

Listing ID #4106318

Get Latest Price
  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world

Large working area. Hardened and ground guideways matting with turcite for X, Y & Z axes. Rotary encoders for feedback of capital axes. Power tool clamping. Preloaded, precision double nut ball screws for capital axes. Balanced spindle weight. Centralised impulse lubrication for guide ways and ball screws. Air conditioning unit for electrical cabinet. Manual pulse generator. Fanuc OMC CNC system with fanuc AC Servo motors and drivers for X, Y, Z and W axes. Fanuc as spindle motor. Main spindle driven directly through toothed belt from spindle motor.
View More Details
Send Enquiry

Company Information

Arvis Engineers
Sadashivpeth, Pune, Maharashtra
View Number
  • Member Since 6 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

Details Machine with moving arm Machine with fixed arm
X - Axis Traverse mm Same as Table Length Same as Table Length
Y - Axis Traverse mm Same as Table Length 1200 to 2500
Z - Axis Traverse mm 300 300, 500 or 700
W - Axis Traverse mm 700 fixed
Work Table Width mm 1200, 1600, 2000 or 2500 1200, 1600, 2000 or 2500
Work Table Length mm 1200, 1600, 2000 or 2500 1200, 1600, 2000 or 2500
Spindle Power kw 9,11,18.5 or 22 9,11,18.5 or 22
Spinddle Speed rpm 20-2000 20-2000
Spinddle Speed (optional) rpm 30-3000 30-3000
Spindle Taper   ISO 40 or ISO 50 ISO 40 or ISO 50
Tool Capacity (optional) no.s 12 12
Rapid Rate
(Y - axis)		 mm/min. 8000 8000
Rapid Rate
(Z - axis)		 mm/min. 6000 6000
Rapid Rate
(Z - axis)		 mm/min. 5000 - 8000 5000 - 8000
Rapid Rate
(W - axis)		 mm/min. 500 N.A.
Feed Rate mm/min. 10-5000 10-5000
Load Capacity kg 2000-5000 2000-5000




Company Details close-icon

Since 1993 Arvis Engineers has been serving the metal working industry by providing quality machine tools to customers consistently. We provide you machine tools with quality output with a competitive edge that impacts your bottom line.
