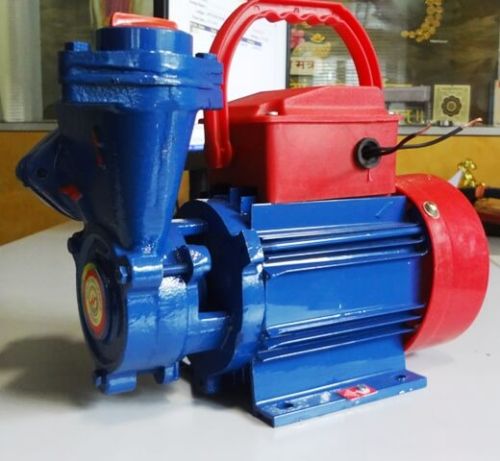

Contact Supplierdomestic monoblock pumps are replacing centrifugal pumps at a number of places because of some of the inherent advantages, such as.
• uni-casing no air lock problem.
• balanced and rigged construction.
• no centrifugal switch.
• less operational and maintenance cost.
at home or small farm house for drinking water and other applications
cast iron casing with brass impeller and with standard carbon-ceramic mechanical seal
motor will be tefc type and available in single and three phase with wide voltage fluctuation.
Water Rating Chart For Self-Priming Monoblock and Coupled Pump | |||||||||||||||||||
Model | HP | Size In MM | Self-priming Capacity(Suction) | Total Head in Meters Discharge in LPM at 50 Hz , 2800 RPM,A.C Supply | |||||||||||||||
8 | 10 | 13 | 15 | 18 | 20 | 23 | 25 | 28 | 30 | 33 | 35 | 38 | 40 | 43 | 45 | ||||
SEMI SELF-PRIMING CENTRIFUGAL PUMP WITH ISI MARK | |||||||||||||||||||
HP-75 MASTER | 0.5 | 25X25 | 4 Meters | 18 | 15 | 11.4 | 7.2 | 4.8 | |||||||||||
HP-120 MASTER | 1 | 25X25 | 8 Meters | 68 | 65 | 60.4 | 55.2 | 49.7 | 44.2 | 39 | 35.3 | 31.6 | 28 | 22.7 | 18.1 | 14.4 | 11.8 | 9.5 | 6 |
HSP-50 SUPER | 0.25 | 12 X 12 | 6 Meters | 16.8 | 14.4 | 11.4 | 7 | ||||||||||||
HSP-70 SUPER | 0.5 | 12 X 12 | 8 Meters | 24 | 20.8 | 17.6 | 13 | 10 | 6.8 | 5 | |||||||||
HSP-120 SUPER | 0.5 | 25 x 25 | 8 Meters | 39 | 36 | 32.4 | 30.6 | 28.8 | 26.4 | 24 | 22 | 18 | 15 | 6 | 3 | ||||
HSP-160 SUPER | 1 | 25 x 25 | 8 Meters | 50 | 42 | 39 | 36 | 33 | 30 | 27 | 25 | 22 | 22 | 15 | 12 | 10 | 5.1 | 3 |
