Contact SupplierWe are offering documment scanner.

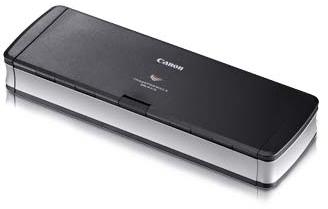

Specifications for imageformula p-215
type desktop sheet-fed scanner
document feeding automatic sheet feeding
document size
width 50.8 - 216mm (2 - 8.5in.)
length 70 - 356mm (2.76 -14in.)
for card scanning 54 x 86mm (2.1 x 3.4in.)
document thickness and weight 0.06 - 0.15mm, 52 -128gm2 (14 - 32lb. Bond)
for card scanning: 0.76mm (0.03in.) is07810 id-1 compatible
feeding capacity 3mm stack (including curls) or 20 sheets of 64gm2 (16lb. Bond)
scanning element cis
light source led (red, green and blue)
scanning side simplex duplex
scanning modes black and white, error diffusion, advanced text enhancement ii, 8-bit (256-level) grayscale, 24-bit color
scanning resolutions 150 x 150dpi, 200 x 200dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi
scanning speed*1 (a4 ltr)
when using usb 2.0 bus power:
black and white grayscale 200dpi: 12ppm (simplex), 14ipm (duplex)
300dpi: 12ppm (simplex), 14ipm (duplex)
colour 200dpi: 10ppm (simplex), 10ipm (duplex)
300dpi: 6ppm (simplex), 6ipm (duplex)
when using usb 3.0*2, usb 2.0 bus power in combination with the power supply usb cable, or the ac adapter:
black and white grayscale 200dpi: 15ppm (simplex), 30ipm (duplex)
300dpi: 15ppm (simplex), 30ipm (duplex)
colour 200dpi: 10ppm (simplex), 20ipm (duplex)
300dpi: 6ppm (simplex), 12ipm (duplex)
interface hi-speed usb 2.0 (usb 3.0 bus power also supported)
scanner driver windows: isis twain driver
mac: twain driver
software windows: isis twain driver, captureon touch, captureon touch lite (built-in), paperport, presto! bizcard, evernote*3
mac: twain driver, captureon touch, captureon touch lite (built-in), presto! pagemanager, presto! bizcard, evernote*3
useful functions full auto mode, deskew, auto size detection, 3-dimensional color correction, user preference, color dropout (rgb), color enhancement (r), color elimination, auto color detection, shading correction, text enhancement (advanced text enhancement ii), multi stream (windows only), preset gamma curve, prescan, rotate image, scan panel, skip blank page, select scanning document side, scan area setting, text orientation, continuous scanning, edge enhancement, moire reduction, prevent bleed through remove background, contrast arrangement, job function, background smoothing, automatic setting of resolution, character emphasis
power supply with usb 2.0 bus power: 0.5a (communication cable only),
1.0a (in combination with the power supply usb cable)
with usb 3.0*2 bus power: 0.9a
with optional ac adapter: dc6v, 0.8a
power consumption usb cable only: 2.5w (usb 2.0), 4.5w (usb 3.0*2)
usb cable and power supply usb cable: 5.0w (usb 2.0), 7.0w (usb 3.0*2)
sleep mode: 1.5w
power off: 0.1w
operating environment 10°c - 32.5°c (50°f - 90.5°f)
humidity: 25 - 80% rh
dimensions (w x d x h) feed trays closed: 285 x 95 x 40mm (11.2 x 3.7 x 1.6in.)
feed tray open: 285 x 257 x 202mm (11.2 x 10.1 x 8in.)
weight approx. 1.0kg (2.2ibs)
options consumables ac adapter, carrying case, usb cable, separation pad, feed roller
specifications are subject to change without notice.
*1 scanning speed may vary depending on pc environment, scanner settings and other factors.
*2 the supplied usb cable is designed specifically for this scanner. Do not use it with any other device.
*3 installed via internet connection.
