Discrete Component Trainer

Listing ID #829178

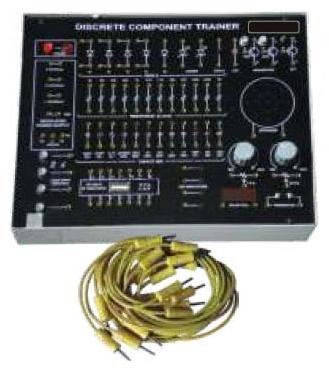

Discrete Component Trainer (with Regulated Power Supply
Lucidly illustrated User's manual unravels analog electronics concepts through brief theoretical reviews followed by experiments, self test questions and exercises. Modularly designed patch panel contains all commonly used discrete components.
FEATURES :
It consists of following
a) Power Supply of +5V, +12V, -12V each of 250 mA (nominal)
b) Silicon, Germanium diodes, Zeners
c) PNP & NPN Transistors, FET
d) One speaker
f) 12 different values of carbon film resistances & they are of ¼w, ½w & 1 Watt.
g) 12 assorted values of capacitors from 100 PF to 100 mF.
h) Integrated Circuits (IC's), Thermistor
i) LED, LDR, Photo diode, solar cell
j) Logic switches & LED indicators etc.
