Contact Suppliersuper duplex steel, alloy 20, hastelloy c22, c276, monel, inconel, aluminium bronze ball valves.
ball valve operation - hand lever with locking device (arrangement) / worm gear / rotary pneumatic / motorized / electrical / remote operated
full bore flanged end connection, three piece design direct mounting pad ball valve, pressure rating class 150/300/600
full bore flanged end connection, two piece design direct mounting pad ball valve, pressure rating class 150/300/600
model series: mp1108 (class 150)
model series: mp1109 (class 300)
model series: mp1110 (class 600)
three piece design, full bore, floating ball, iso 5211 direct mounting pad ball valve manufacturing size range: dn25/25mm/1"/one inch, dn32/32mm/1-1/4"/one and quarter inch, dn40/40mm/1-1/2"/one and half inch, dn50/50mm/2”/two inch, dn65/65mm/2-1/2”/two and half inch, dn80/80mm/3”/three inch, dn100/100mm/4”/four inch, dn125/125mm/5”/five inch, dn150/150mm/6”/six inch, dn200/200mm/8”/eight inch, dn250/250mm/10”/ten inch, dn300/300mm/12”/twelve inchsize and big more large size of ball valve can manufacture and supply on order basis.

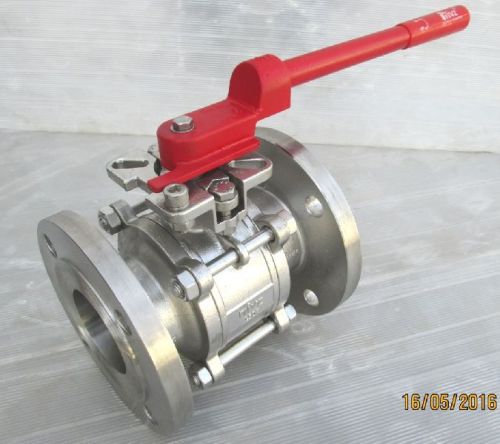

nivz valves & automation manufacturing of ball valve series mp1108 is iso 5211 direct mounting pad ball valve in three piece design construction, anti blowout proof stem, full bore, floating ball, antistatic device with fire safe design features.
an integral cast with body direct mounting pad ball valve have main advantage is easy to convert with worm gear actuator, quarter turn - pneumatic rotary actuator or motorized electrical actuator operated without any additional mounting or installation accessories like adaptor, coupler and bracket. Due to not requirement of any extra extensions, ball valve become very compact after installation of automation accessories, save space and looks fabulous.
one more by default advantage of nivz series mp1108 – direct mounting pad ball valve is each valves have locking arrangement to lock the hand lever in a position of open or close.
mp1108 series ball valve have provision of elliptical gland flange to tight stem seal and can easy to stop leakage. Generally major direct mounting pad ball valve have chinese designed threaded type hex nut to stop leakage from stem, but when they try to tight it, nut always jammed from atmosphere and process media corrosion. Also for tightening the stem nut special types of box spanner required which not easy available everywhere, so against of chinese design our elliptical gland flange is the best for performance.
we supply each ball valve with finished flange face of iso 5211 to mount actuator at any time by customer after removing of hand lever. On remove of one bolt of handle, total handle out and ready to convert for choice of automation.
our design team create a good combination of iso 5211 mounting flange and ball valve stem square dimensions to easy match with actuator standard without any extension.
one normal direct mounting pad ball valve can convert in various products such as remote operated ball valve, electrical actuator operated iso pad ball valve, motorized actuated iso ball valve, pneumatic actuator operated direct mounting pad ball valve, api 6d direct mounting pad ball valve, iso 17292 standard ball valve, fire safe design approved direct mounting pad ball valve, fire safe tested api 607 certified ball valve and more.
Design Standard | : | BS EN ISO 17292 (BS 5351) / BS EN ISO 12516 / BS EN 1983 / ASME B 16.34 / API 6D |
Inspection & Testing Standard | : | BS EN ISO 12266 - I (BS 6755 - I) |
Fire Safe Testing Standard | : | BS EN ISO 12266 - II / API 607 |
Flange To Flange Distance | : | As Per ANSI B 16.10 / Tailor Made on Request |
End Connection | : | Flanged End to ANSI B 16.5, Class 150 / 300 / 600 |
: | BS 10 Table D / E / F / H | |
: | PN 6 / PN 10 / PN 16 / PN 25 / PN 40 / PN 64 | |
: | DIN Standard / JIS Standard / IS Standard | |
Manufacuring Size Range | : | 1/2" (DN15) to 12"(DN 300) |
Pressure Rating of Valve | : | 150# / 300# / 600# |
: | PN 10 / PN 16 / PN 25 / PN 40 / PN 64 | |
Valve Operation | : | Manual Hand Lever / Worm-Gear Actuator Operated |
: | Pneumatic Rotary Quarter Turn Actuator / Electrical Actuator |
