Contact SupplierFor Compression Test |
||||||
---|---|---|---|---|---|---|
Pair for Compression Plate dia (mm) | 120 | 120 | 120 | 120 | 160 | 220 |
For Tension Test: Tension Test Jaws |
||||||
For Round Specimen dia (mm) | 10/20/15 | 10/20/15 | 10/25/15 | 10/25/15 | 10/30/15 | 20 - 40 |
20 - 30 | 20 - 30 | 25 - 40 | 25 - 40 | 30 - 50 | 40 - 60 | |
- | - | - | 40 - 55 | 50 - 70 | 60 - 80 | |
For Flat Specimen Thickness (mm) | 0 - 10 | 0 - 10 | 0 - 15 | 0 – 15 | 0 - 22 | 0 - 22 |
10 – 20 | 10/20/15 | 15 - 30 | 15 - 30 | 22 - 44 | 22 - 45 | |
- | - | - | - | 44 - 65 | 45 - 70 | |
Max. Wwidth of Flat Specimen(mm) | 50 | 50 | 65 | 70 | 70 | 90 |
For Transverse Test |
||||||
Adjustable Roller Support of width (mm) | 150 | 150 | 150 | 160 | 160 | 200 |
Diameter(mm) | 30 | 30 | 30 | 50 | 50 | 70 |
Max. adjustable clearance (mm) | 450 | 500 | 500 | 600 | 800 | 900 |
Radius of Punch tops (mm) | 6 | 6 | 12 | 16 | 16 | 30 |
12 | 12 | 16 | 22 | 22 | 40 |
Note: Higher capacity machine are also available on request
Order Code | Product Name |
---|---|

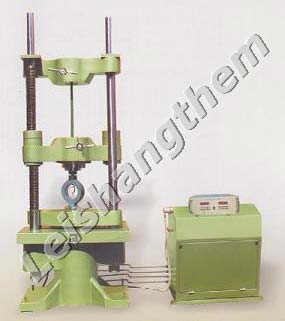

LIMT-103 | Digital Universal Testing Machines |
Special Accessories at Extra Cost | |
LIMT-103-1 | Load Stabilizer |
LIMT-103-2 | Brinell Test attachment |
LIMT-103-3 | 1800 Bend Test attachment |
LIMT-103-4 | Shear Test attachment |
Order Code | Product Name |
---|---|
LIMT-101 | Computerized Universal Testing Machine |
LIMT-109 | Tensile Testing Machine Digital |
LIMT-113 | Spring Testing Machine Digital |
LIMT-119 | Impact Testing Machine: Digital |
LIMT-127 | Torsion Testing Machine Digital |
LIMT-133 | Digital Fatigue Testing Machine |
LIMT-139 | Rockwell Hardness Tester Digital |
LIMT-151 | Vickers Hardness Tester |
LIMT-171 | Coil Spring Testing Machine |
LIMT-181 | Erichsen Cupping Testing Machines |
