Digital Tablet Disintegration Test Apparatus, Feature : Easy To Use, Proper Working, Superior Finish

Digital Tablet Disintegration Test Apparatus

Digital Tablet Disintegration Test Apparatus, Feature : Easy To Use, Proper Working, Superior Finish

Listing ID #6197136

Get Latest Price

MOQ 1 Piece
Country of OriginIndia
TypeDigital Tablet Disintegration Tester
FeatureEasy To Use, Proper Working, Superior Finish, Auto Stop After Completion Of Set Time With Alarm
Payment TermsNEFT, IMPS, DD, D/P, T/T, Other
Supply Type Exporter, Supplier, Importer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Country of Origin India
Type Digital Tablet Disintegration Tester
Feature Easy To Use, Proper Working, Superior Finish, Auto Stop After Completion Of Set Time With Alarm
Up-Down Length 55 +/- 5mm.
Number of Baskets Two in Model VSI-20 // One in Model VSI-21
Time Control Digital (Programmable from 1 Sec to 99Hr, 59min., 59 sec.)
Brand Name VSI
Type of Heating Hot Plate
Electric Motor Low rpm A.C. Motor
Up-Down Speed 30 +/- 2 Strokes/min.
Payment Terms NEFT, IMPS, DD, D/P, T/T, Other

VSI Electronics Private Limited is one of the renowned manufacturer, supplier and exporter of hi-tech instruments used in the pharmaceutical industries, institutions and research laboratories. We are considered as predominant Tablet Disintegration Test Apparatus manufacturer, supplier and exporters from India. The Microprocessor Tablet Disintegration Apparatus and the Digital Tablet Disintegration Apparatus are designed for accurate estimation of disintegration time of tablets as per IP/USP standards. Our Disintegration Test Apparatus are designed to test the two batches of six tablets, simultaneously.

VSI Electronics Private Limited is also counted among the leading manufacturer and supplier of other instruments like Double Beam UV-VIS Spectrophotometers, UV-VIS Spectrophotometers, Visible Spectrophotometers, Fluorometer, Dissolution Apparatus, Disintegration Apparatus, Friability Apparatus, Melting Point Apparatus, Bulk Density Apparatus, Tap Density Apparatus, pH Meters, Conductivity Meters, TDS Meters, Dissolved Oxygen Meter, Turbidity Meters, Nephelometers etc. from India.

Model Available: VSI-20, VSI-21 and VSI-19

Digital Disintegration Test Apparatus (With Two Baskets), VSI-20 measures disintegration time of 12 tablets/capsules at one time. Disintegration time is displayed on LED display.

Digital Disintegration Test Apparatus (With One Basket), VSI-21 measures disintegration time of 12 tablets/capsules at one time. Disintegration time is displayed on LED display.

Salient Features :

Programmable Time with Digital Display
Auto Stop after completion of Set time with Alarm
Memory for Protection of Running Test in case of power failure
Separate Regulator for Control of Heating
Facility for Hold & Resume the Running Test for inspection of sample

Note : Appearance & Specifications are subject to change due to continuous development.

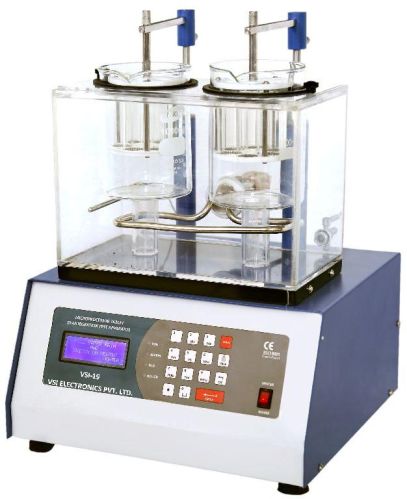

We also offer Microprocessor Disintegration Test Apparatus, Model VSI-19

Microprocessor Disintegration Test Apparatus (2 Basket) VSI-19 with 20x4 line alphanumeric LCD display, 20 Setups storage facility, 1000 sample storage facility, Dual temperature sensor control of Water bath and Beaker and USB interface for computer connection available.

SALIENT FEATURES

Complies with USP, IP Specifications
Extremely Useful for Pharmaceutical Labs
Highly Accurate and Easy to Operate
Baskets “UP & DOWN” movement as per IP/USP Specifications
20 x 4 Line Alphanumeric LCD with Backlit
15 Soft Touch Membrane Type Keys
20 Setup Storage Facility
400 Samples Storage Facility
USB Interface available
Audio Visual Indicators for System Status

Technical Specifications Of Microprocessor Disintegration Test Apparatus (Vsi-19)

Display	20 x 4 Lines Alphanumeric LCD Display with backlit
Keyboard	15 Soft Touch Membrane Keys
LED’s	4 LEDs available for different status indications 3 LEDs for Test Status like Run, Alarm, End and 1 LED for heater ON/OFF status
Setup Data	Facility for 20 different Test Setups available
Printer	Provision for the attachment of dot-matrix printer with Centronics parallel port interface
Speed	55mm. 30 ± 1 strokes per minute
Resolution	1 Second – 99 Minutes
Temp. Range	20 – 50 Deg.C
Temp. Accuracy	± 0.2 Deg.C
Temp. Control	Microprocessor based using PT-100/Semiconductor Sensor
Reaction Beaker	1000 ml.
Heater	0.4 KW (Approx.)
PC Connectivity	USB Interface available
Power	230 V ± 10% 50 Hz AC
Size (LxBxH)	365 x 350 x 495 mm (Approx.)
Weight	9 Kg. Approx.
STANDARD ACCESSORIES	External Temperature Sensor, Mains Lead & Instruction Manual.

Additional Information

Port of Dispatch Mohali / New Delhi (India)
Delivery Time Ready Stock or within 7-10 days
