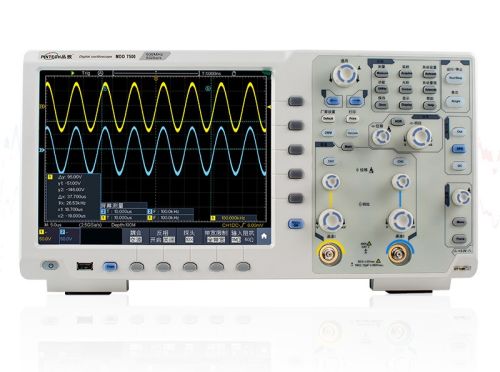

Contact Supplier1、Including 7 measurement functions in one: oscilloscope, waveform generator, multimeter, FFT spectrum analyzer, frequency. counter, protocol analysis, amplitude-frequency curve analysis.
2、350 MHz / 500 MHz oscilloscope bandwidth, 5 GSa/s sample rate.
3、Standard 400MB memory depth. 600,000 wfms/s refresh rate, easy to capture exceptional and low probability events.
4、10.4-inch multi-touch screen.
Model |
MDO 7500 |
MDO 7500A |
Channels |
2 |
4 |
Bandwidth |
500MHz |
500MHz |
Rise time |
0.7ns |
0.7ns |
Sampling rate(single) |
5GSa/s |
|
Sampling rate(dual) |
2.5GSa/s |
|
Sampling rate(four) |
1GSa/s |
|
Storage depth |
400M |
|
Input coupling |
AC,DC,GND |
|
Input impedance |
1MΩ±2%,and 15pF±5pF paralleling,50Ω±2% |
|
Vertical resolution |
8 bits |
|
Time base range |
500ps/div-1000s/div,step by 1-2-5 |
|
Trigger mode |
Auto,normal,single |
|
Trigger |
Edge,video,Pulse,Slope,Runt,Windows,Timeout,Nth Edge,Logic,I2C,SPI,RS232/UART,LIN,CAN |
|
Display screen |
10.4 inch |
|
Touching screen |
√ |
|
Functional generator |
50M single channel function generator |
|
DMM |
Optional |
|
Display resolution |
800×600 |
|
Waveform capture rate |
600000wfms/s |
|
Dimension |
422x226x135mm |
|
Weight |
5kg |
|
Operating temperature |
0℃- 40℃ |
