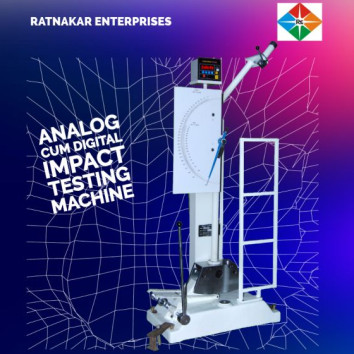

Contact SupplierSince the inception of our firm, we are offering a quality assured array of Digital Impact Testing Machine.
Description:
Electronic digital display
Simple construction of pendulum izod so that izod or charpy machine, machine can build at sight
Interchangeable stickers for izod & charpy positions
Positive pendulum lock in izod & charpy positions
Safety guard for protection
A braking arrangement for stopping the pendulum
Optional printer interface
Technical Specification And Features:
Suitable for Charpy & Izod Impact tests on various materials. Works on Pendulum principle.
Rigid designs of machine frame & other parts assure minimum energy absorption during fracture which results in improved test accuracies.
The highly stressed & wearing parts like support blocks & strikers are of special alloy steels duly heat treated.
Safety guard for the operator is provided.
Initial potential energy for Charpy is 300 Joules & for Izod is 170 Joules with a resolution of 0.5 Joules
Pendulum drop angle for Charpy is 140° & for Izod is 90°.
Optional Accessories:
Caliper gauge for checking V notch for Izod & Charpy.
Templates for checking 10 x 10 mm cross section of Izod / Charpy test specimen.
Depth notch gauge including V & U notch gauges for checking depth below V/U notch, angle and radius.
Izod support for 0.450" dia Izod round specimen.
Self centering tong for quick and accurate setting of Charpy test specimen.
''V'' notch milling cutter.
